Description

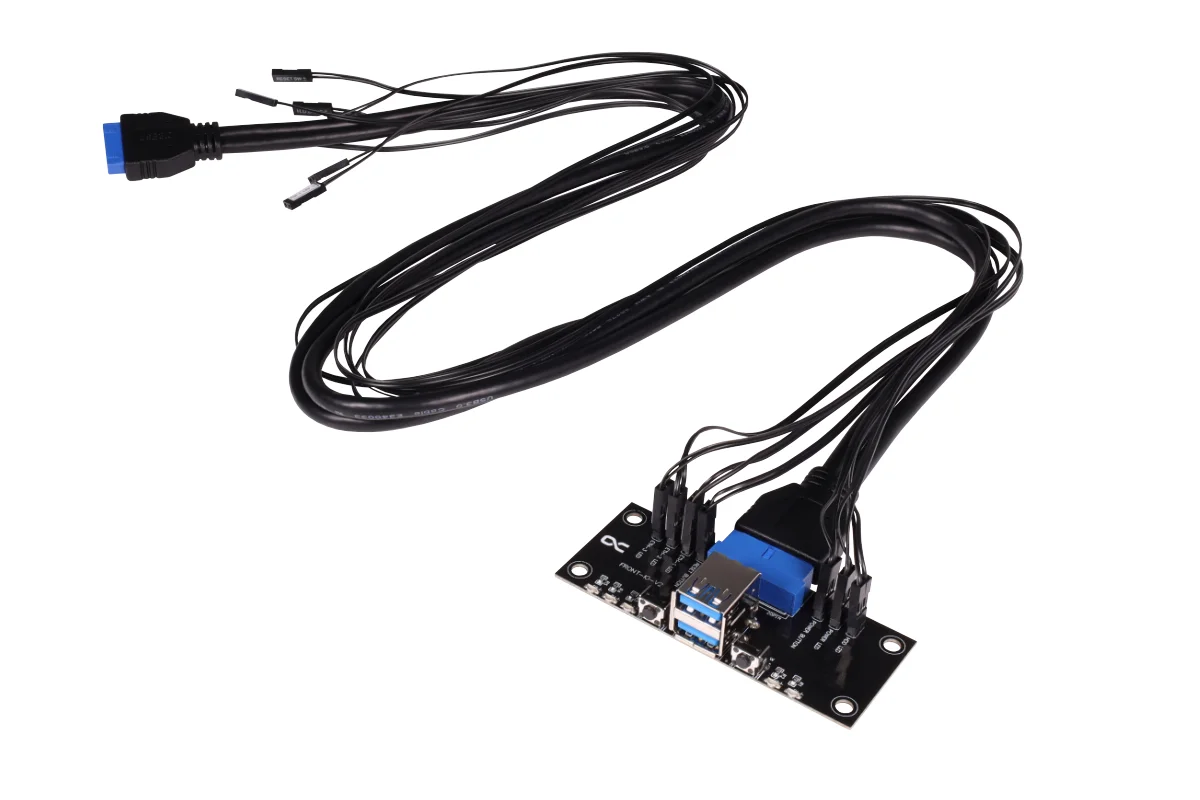

The Alphacool I/O ES Panel with cable set and USB 3.0 is designed for use with Alphacool server cases. The cable set includes a total of 8 cables with a length of 80 cm, including seven 2-pin cables for three network LEDs, power LED, HDD LED, as well as a power and reset switch. An connection cable with a 19-pin header for fast USB 3.0 is also included.

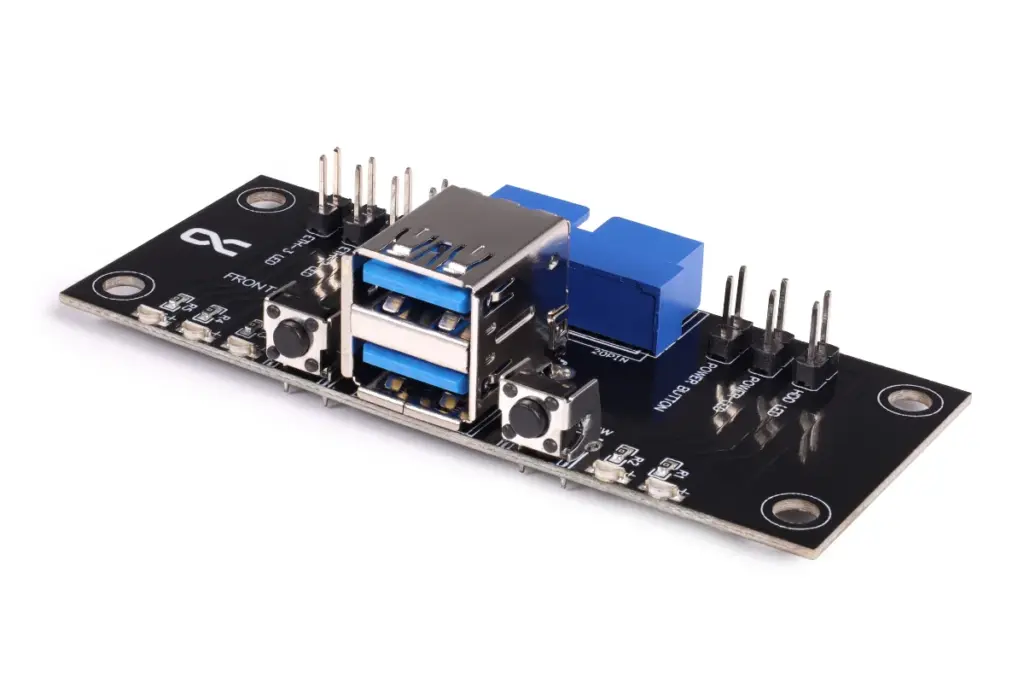

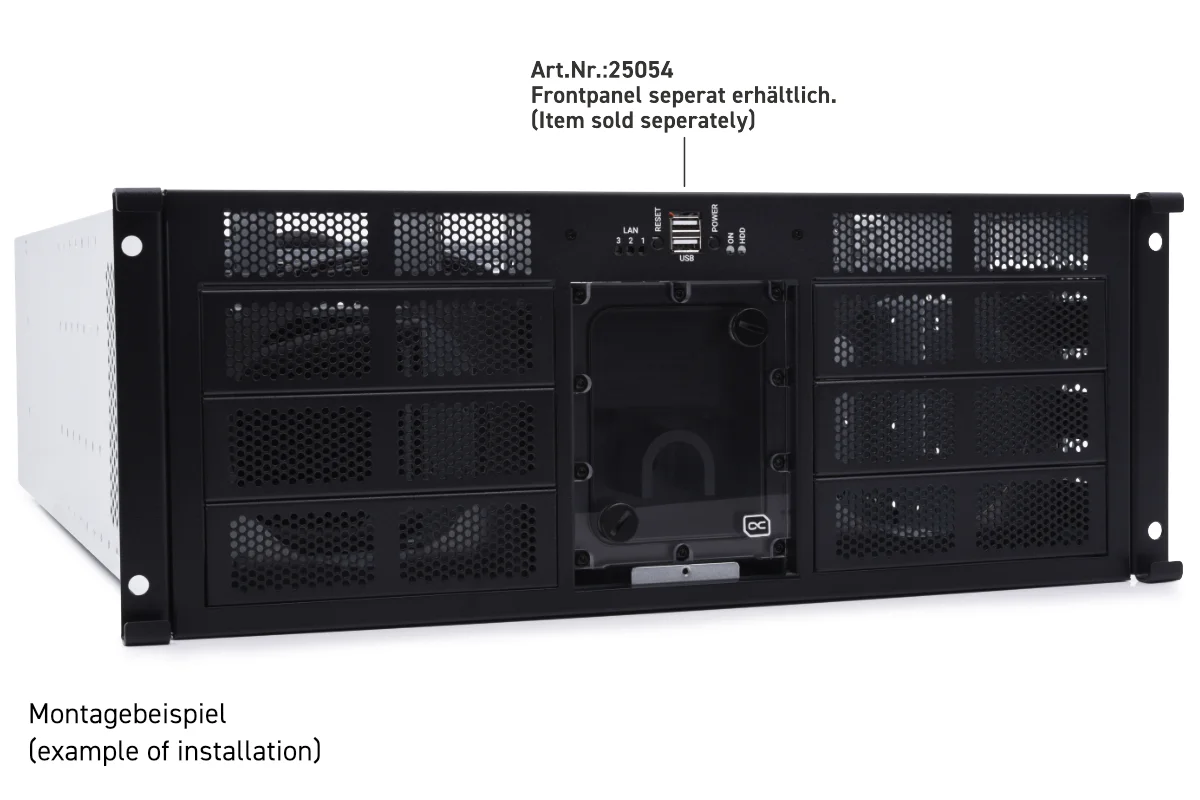

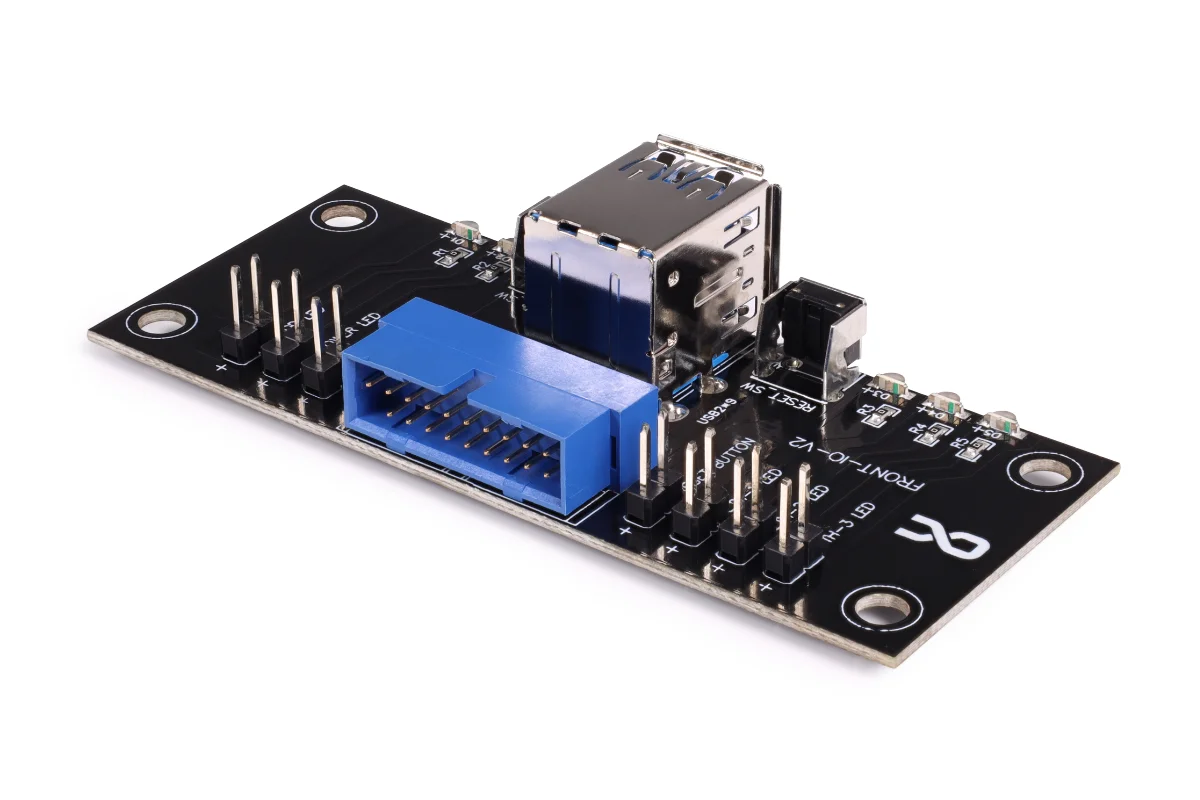

The Alphacool Front I/O ES Panel is a practical solution for use in server cases with a format of 1HE to 4HE. It is equipped with a power and reset switch and has two USB 3.0 ports to provide additional connectivity. Various status LEDs are built into the board to ensure effective monitoring of server functions. There are three connections for the network LEDs, one each for the HDD and power LEDs, and one for the power and reset switch. All LEDs and switches are connected to the board via 2-pin connectors. The board can be secured with 4 screws. The mounting holes have an inner diameter of 3.5 mm and are arranged in a rectangle with 74 mm x 24 mm distances (measured from the center).
Technical data | |
Dimensions board (L x W x H) | 82 x 34 x 20mm |
Mounting hole distances | 74 x 24 mm |
Inner diameter of mounting holes | 3,5mm |
Cable length | 80cm |
USB standard | 3.0 |
Weight (without cables) | 15g |
Weight (with cables) | 115g |
Color | black |
