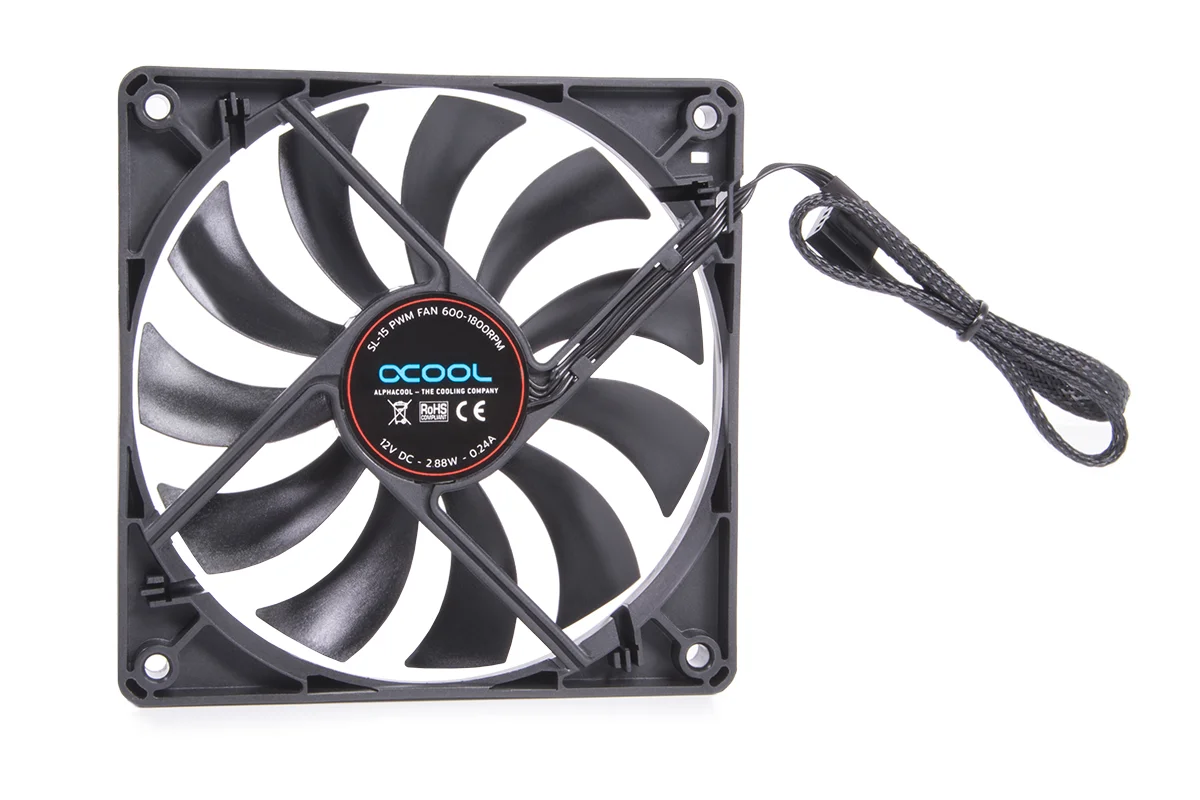

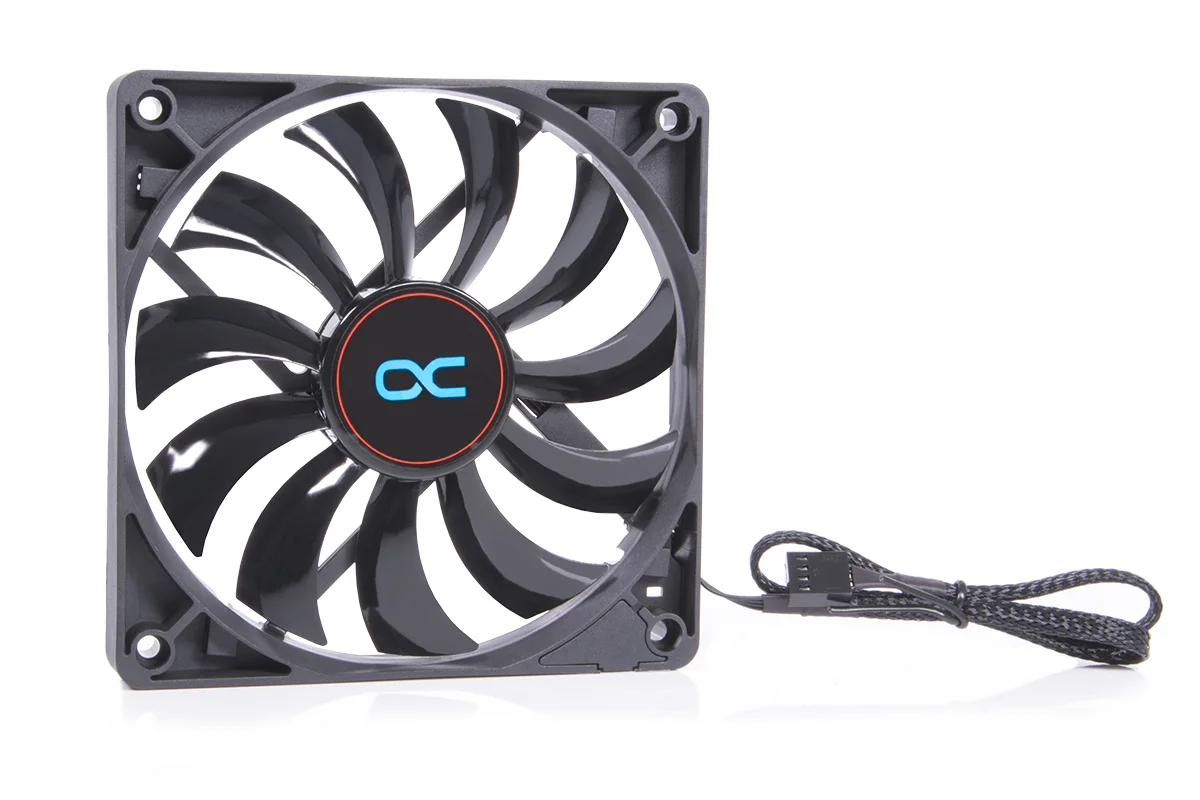

Alphacool SL-15 PWM Low-Profile, Slim Fan 600-1800rpm ( 120x120x15mm ) – Black

Description

The Alphacool 120 mm SL-15 fan is a special slim fan for use on radiators. With a frame height of only 15 mm, it is particularly suitable for use in ultra-compact housings, also known as SFF housings.

Compact and powerful
With a frame height of only 15mm, the Alphacool 120mm SL-15 fan fits into almost any compact housing. Despite the flat design, the 11 arc-shaped fan blades generate a high air pressure of 1.2mm H2O, a value that is not reached by many normal 120mm fans. The classic fan frame also ensures that no air can escape to the side when used on a radiator. The airflow can also compete with many normal 120mm fans with 25mm thick frames. With more than 70m³/h the SL-15 fan achieves an enormously high airflow compared to similar fans. Therefore, it is also optimally suited as case fan.

High control range
The fan is controlled by PWM via a 4-pin connector. With a speed range of 600 to 1800rpm the fan can always controlled to your preference. If the computer is only slightly loaded, you can let the fan run very slowly and inaudibly while you can get the required performance at full load. The 11 fan blades push a lot of air through the cooler or into the case and of course also out of the case at any speed.

The Alphacool 120 mm SL-15 fan is part of the new Alphacool Core product line and offers high quality and performance with all important features without any other gimmicks.

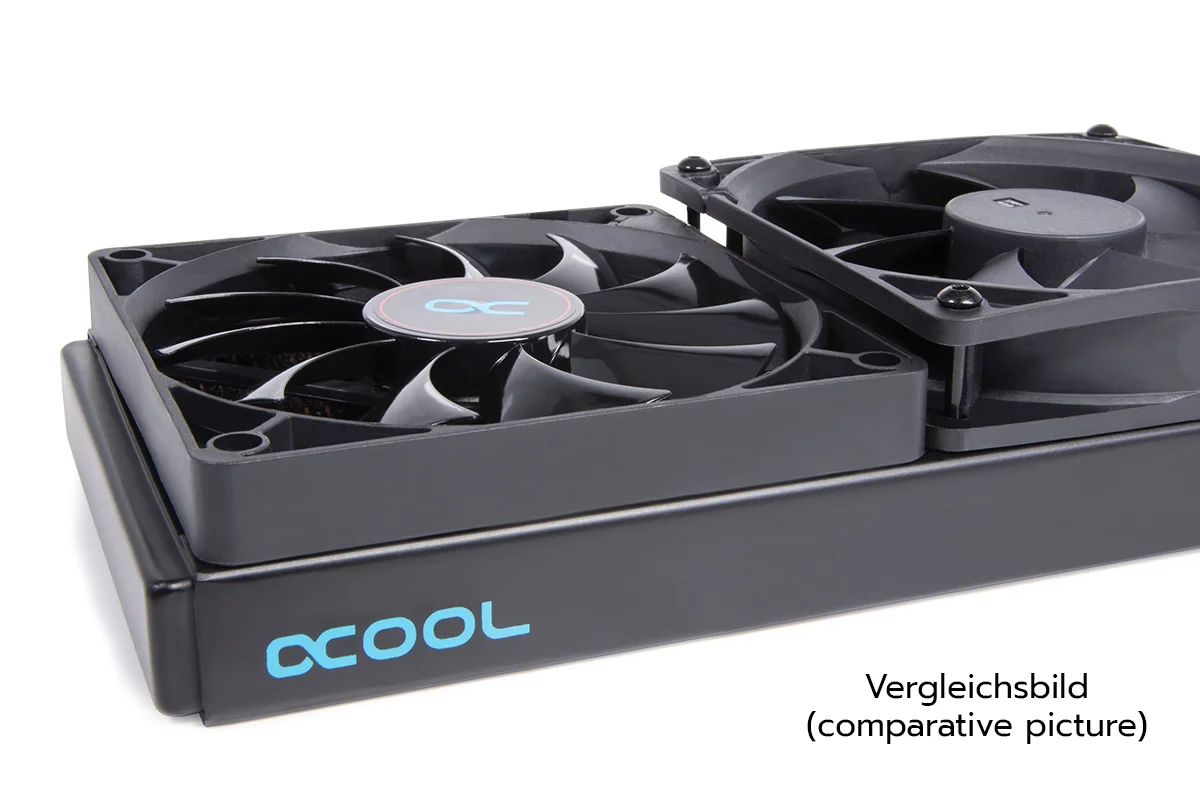

Note: To mount the fan on an Alphacool radiator you need M3x15 screws. The fan screws are recessed in the fan frame.

Technical data:
L x W x H: 120 x 120 x 15 mm
Speed: 600 – 1800rpm
Bearing: Ball bearing
Connection: 4-Pin PWM
Cable length: 35 cm
Operation voltage: 10,2 – 13,8V
Start voltage min.: 7V
Power consumption: 0,24A (2,88W)
Static pressure: 1,2 H2O
Max. air flow: 71,36 m³/h
Noise: 32 dB(A)
MTBF: 50.000h

Download data sheet PDF: Alphacool SL-15 PWM Fan 600-1800rpm ( 120x120x15mm )
