Alphacool Apex Pro Skeleton Carbon Case (by special order)

Alphacool Apex Pro Skeleton Carbon Case (by special order)

Manufacturer: Alphacool

$ 1,788.97

SKU: 13758

Out of stock

Out of stock

Join the waitlist to be emailed when this product becomes available

Description

Special order item.

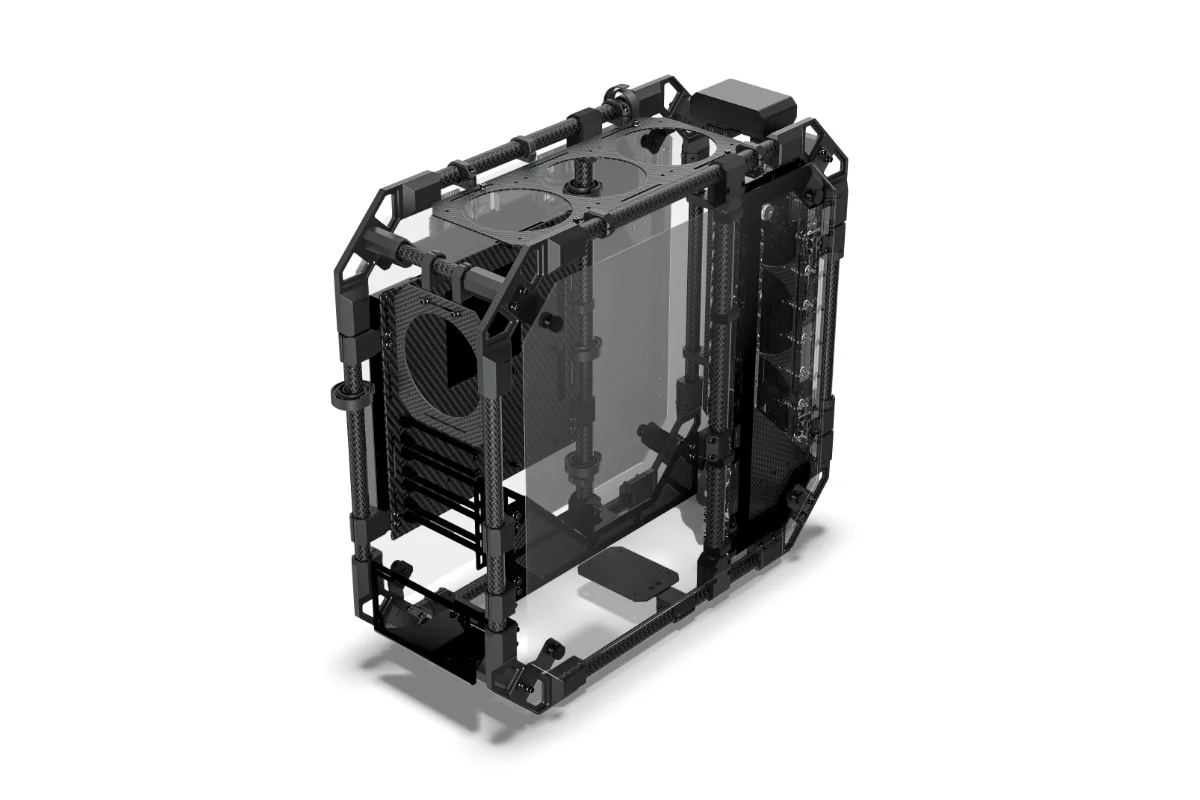

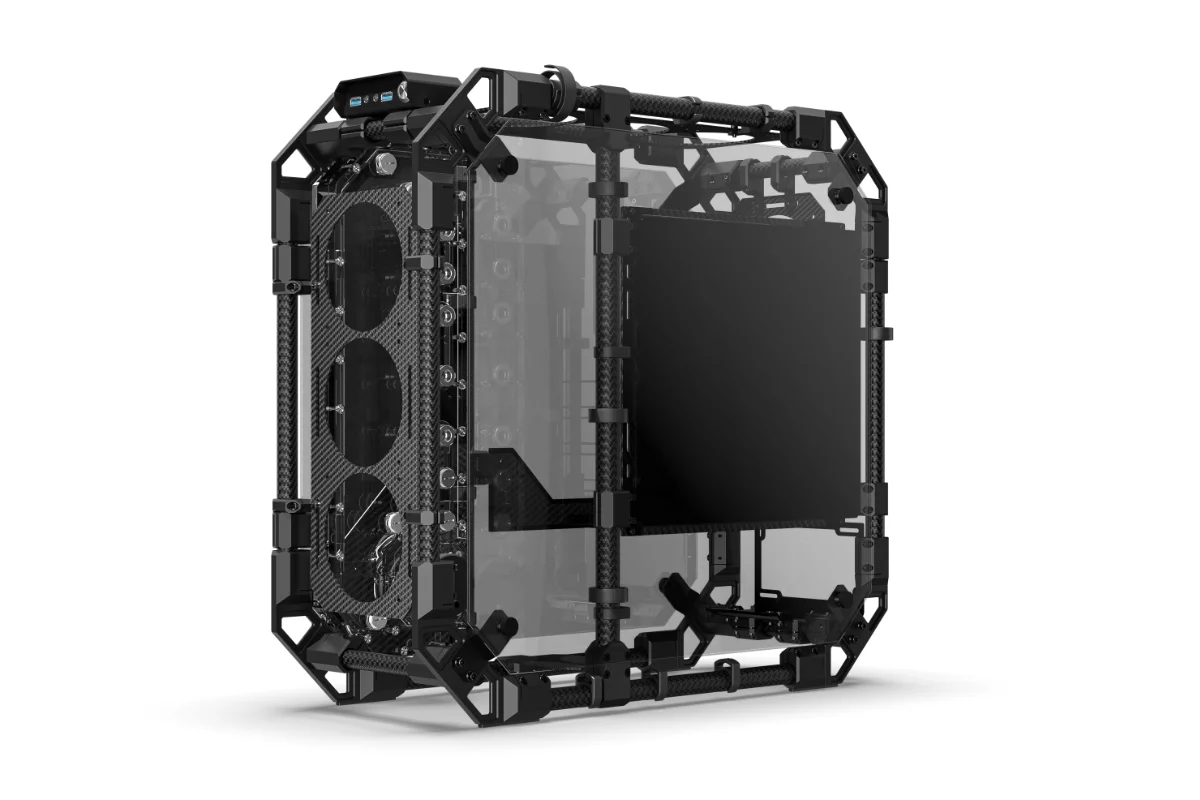

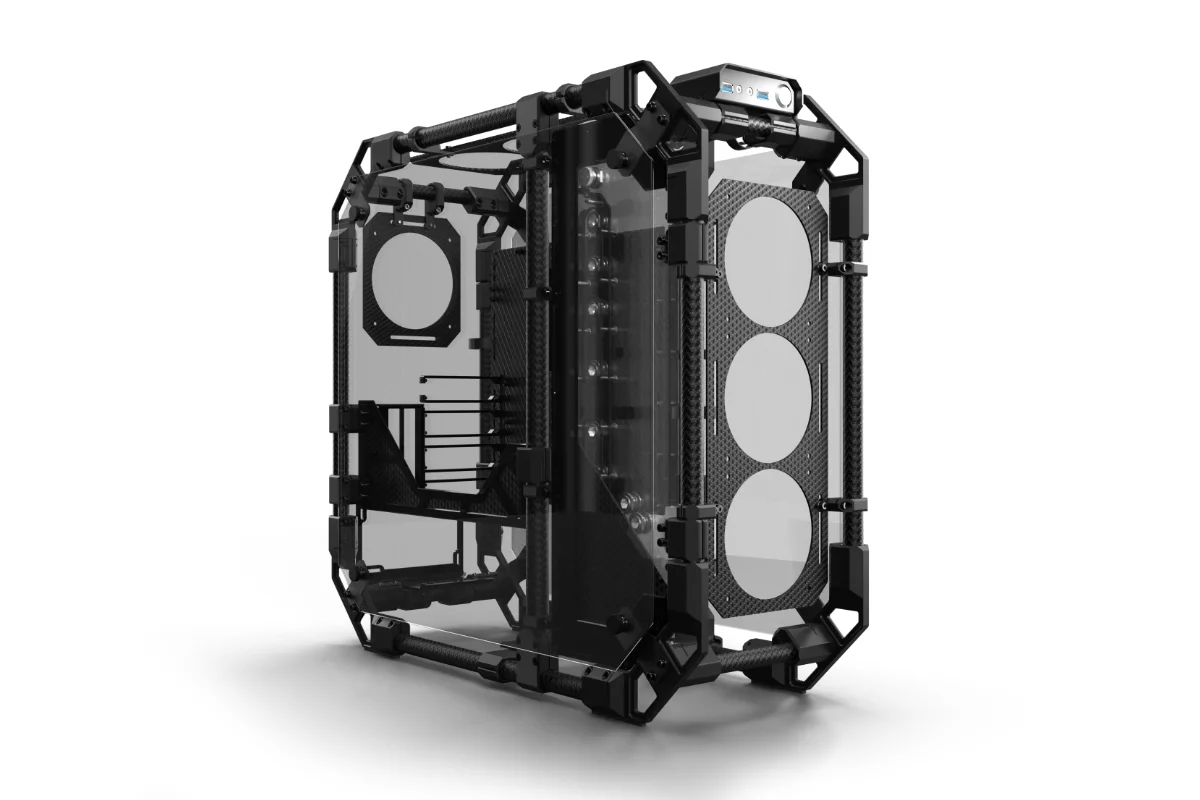

Unlimited freedom with the Alphacool Apex Pro Skeleton. Made from carbon rods and CNC-milled aluminum connectors, this case was specially developed to meet the requirements of water cooling systems. In order not to limit creativity, the Skeleton can be completely disassembled and customized according to your own wishes. The supplied Distro Plate including pre-assembled VPP Apex pump is designed exclusively for this case and enables numerous connection options.

A new level of creativity

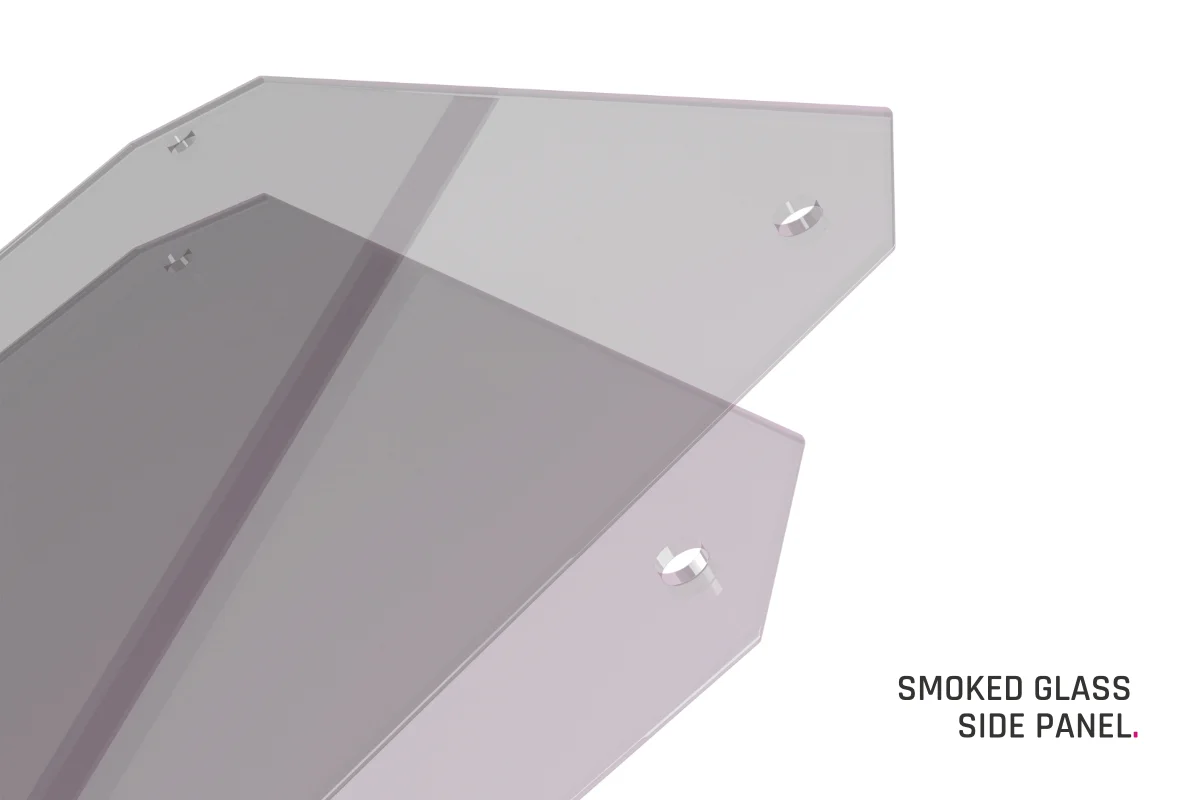

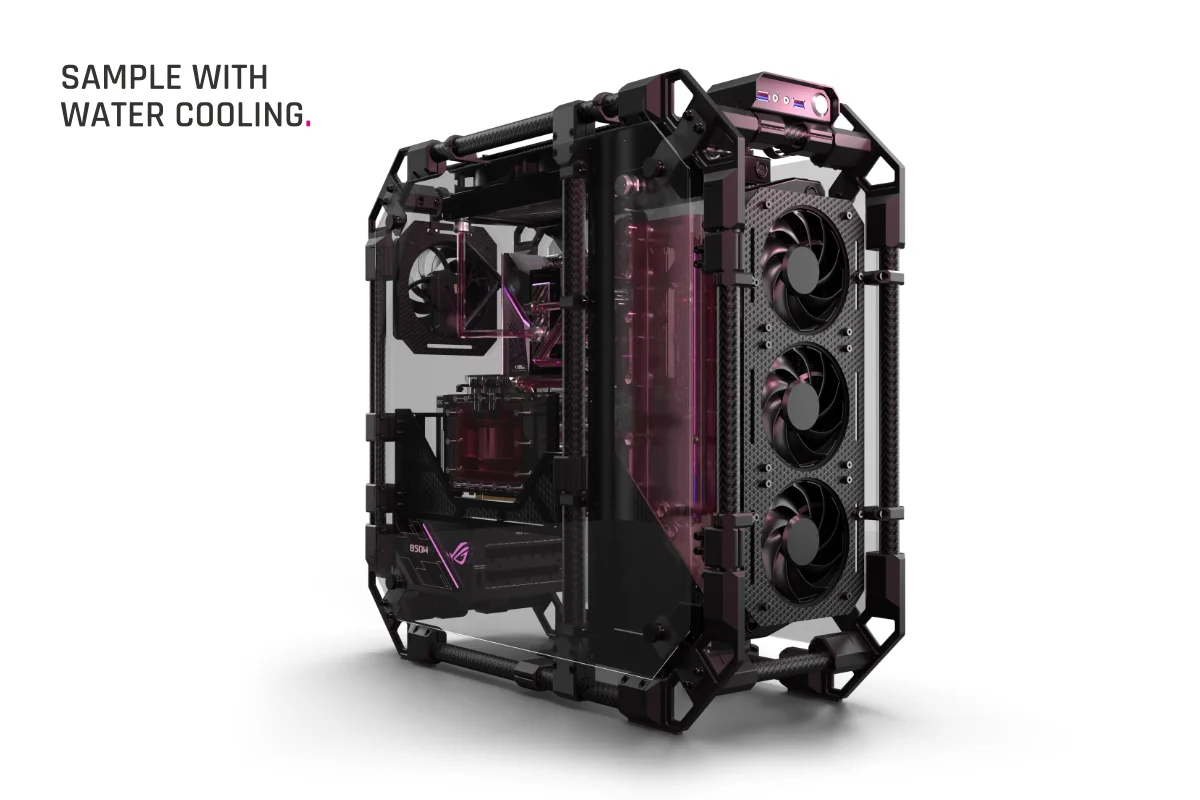

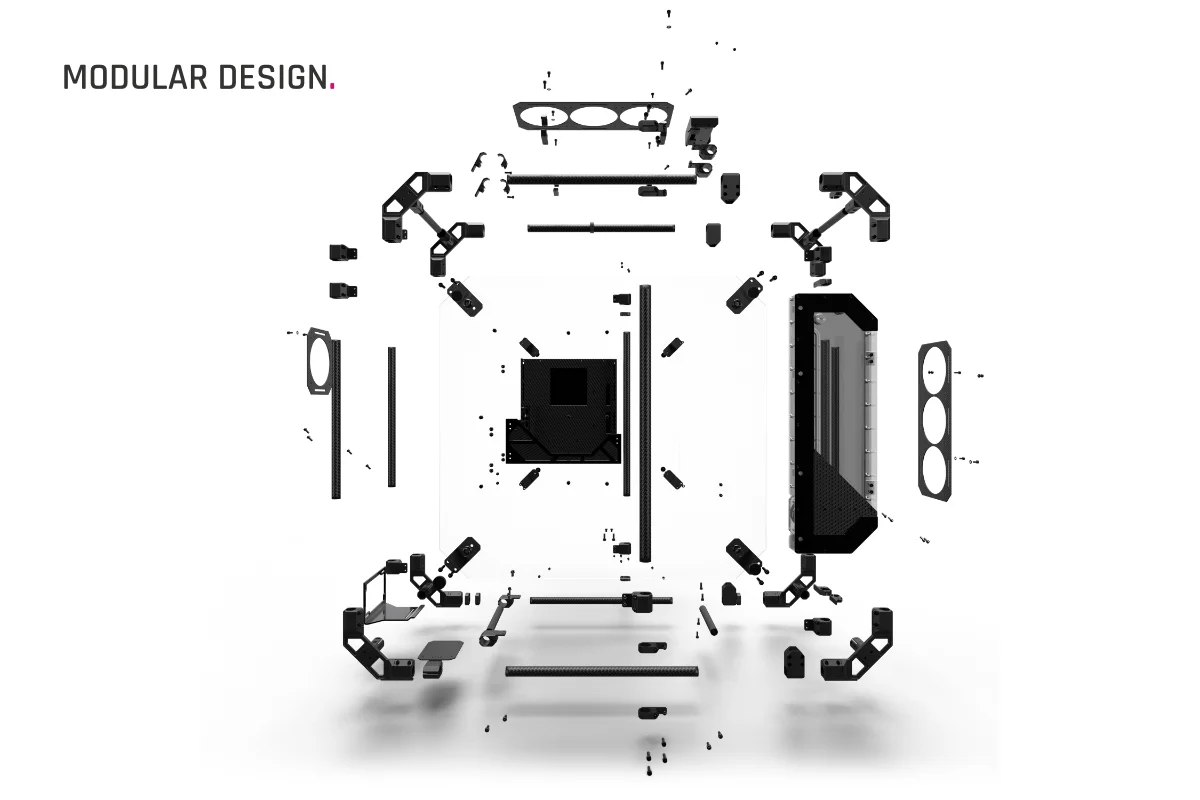

The Alphacool Apex Pro Skeleton Carbon case is characterized by a design in which all components are screw-mounted, which allows for extensive modifiability. Equipped with three radiator mounts, two for 360mm and one for 120mm, this case offers ideal conditions for high-performance cooling systems. A GPU bracket and cable included in the scope of delivery allows the graphics card to be mounted vertically. The mainboard tray including cable box can also be positioned flexibly. The smoked glass side panel is another feature that opens up additional design options, as is the freely selectable positioning of the front panel. All in all, the skeleton case allows a great deal of freedom and creative ideas.

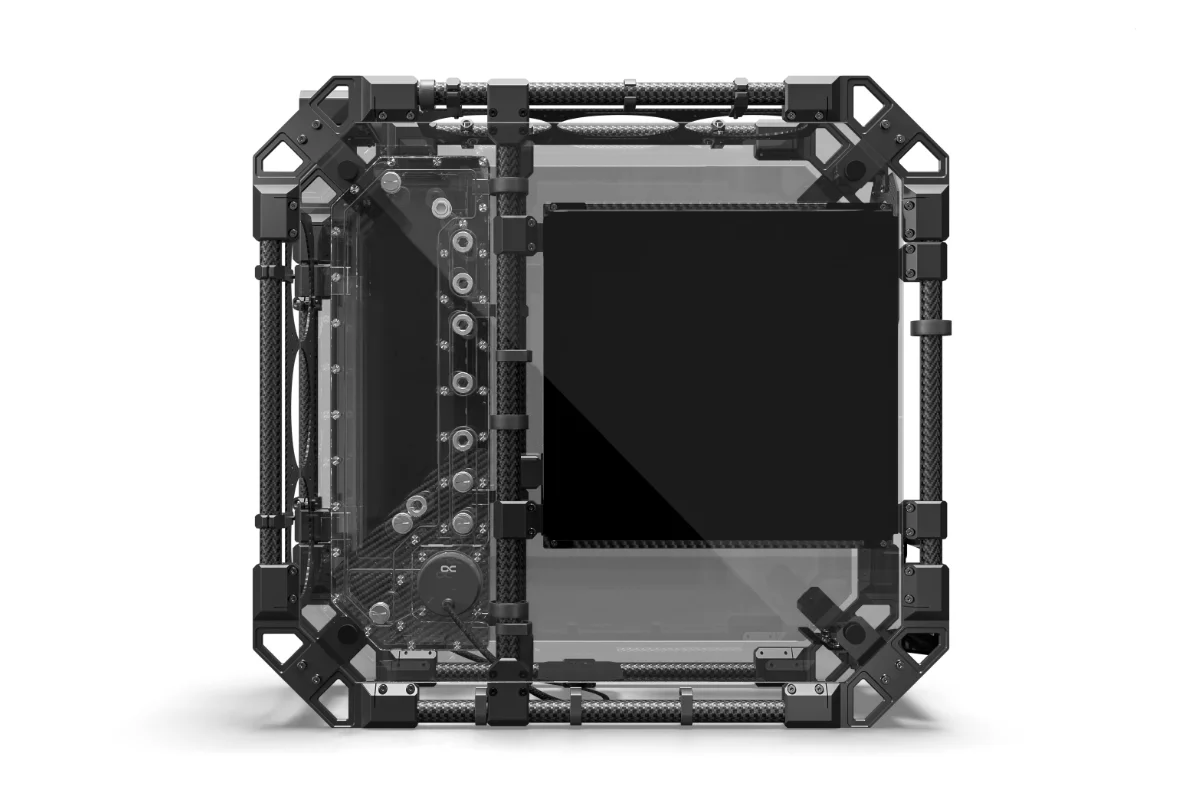

Exclusive distro plate
The included Distro Plate with 750ml reservoir offers connection options for CPU, GPU and radiators. The pre-installed Alphacool Apex pump has enough power for complex cooling loops. The connections of the Distro Plate are made of chrome-plated brass, as is usual with Alphacool. By embedding the connections in the acrylic, the problem of possible leaks due to cracking is avoided. Fitted with O-rings, the two connector parts lock together during installation and ensure maximum safety.

Apex Design

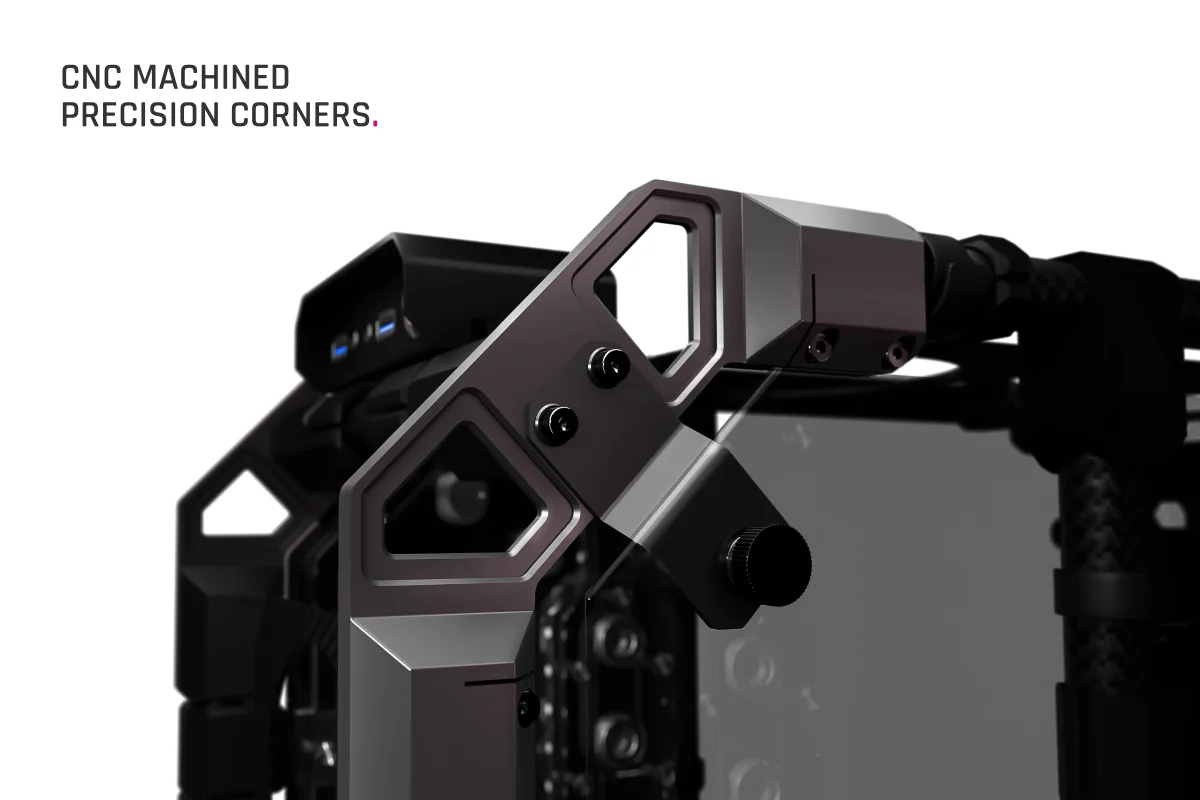

The Apex product line from Alphacool represents the highest level of perfection. First-class materials and innovative technologies guarantee a unique premium product. Consisting of real carbon and modular, CNC-milled aluminum connectors, the Apex Pro Skeleton case offers limitless creativity with a unique look. Inside each Skeleton case resides a truly unique creation waiting to be unleashed.



Technical data
Dimensions (L x W x H) 607.50 x 259.80 x 573.00 mm
Weight 13kg
Material Carbon, aluminum, smoked glass
Mainboard support ATX, mATX, EATX, ITX
PCIe slots (without vertical GPU mount) 7
GPU bracket Vertical: 2 Slot | Horizontal: 2+ Slot
PCI Express Riser 4.0 x16
Drive mount 1x 2.5″ SSD
Power supply bracket ATX Standard
Radiator front/top support 120, 240, 360mm
Radiator rear support 120mm
Frontpanel USB 2x 3.0 Type A
Frontpanel Audio 1x audio output | 1x microphone input
Color carbon, black
Technical data Distro Plate
Dimensions (L x W x H) 155.00 x 63.50 x 486.00 mm
Material Acrylic
Volume approx. 750ml
Pump compatibility VPP/D5
Threads 9x G1/4“ + 2x Fillport and 1x Drainport
Maximum working temperature 60 °C
Pressure tested 0.8 bar
Quantity digital aRGB LEDs 15
Power digital aRGB LEDs 5V
Power connection digital aRGB LEDs 3-Pin JST + 3-Pin 5V
Color transparent
Technical data pump
Material pump synthetic material
Material pump cover aluminium
Material axle ceramics
Connections 4-Pin PWM | SATA
Rotational speed 2500 – 4500 RPM
Cable lengths 4-Pin PWM – 48cm | SATA – 48cm
Operating voltage 8-13V DC / 14W IP32
Starting voltage 12V DC
Maximum pumping head 4.25m
Maximum flow rate 340L/h
Maximum working temperature 60°C
Color black
