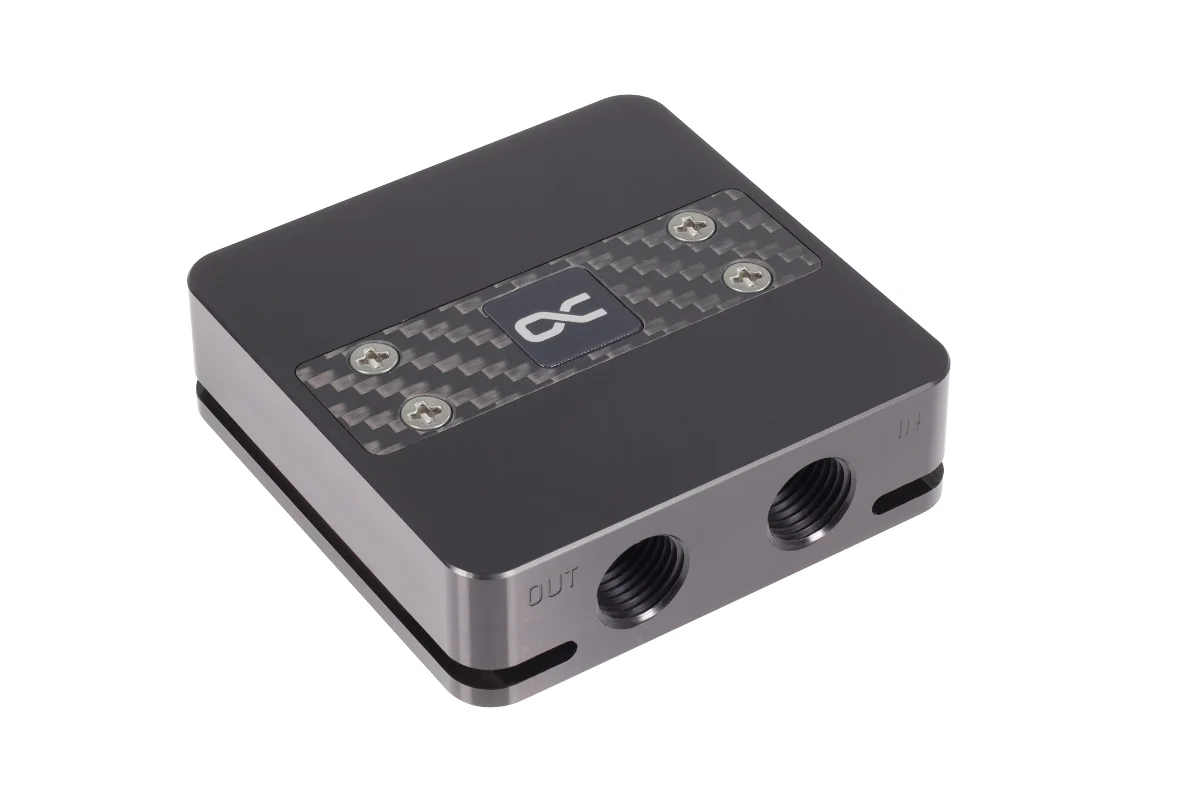

Alphacool ES 1 1U - Low Profile CPU Block (LGA1700/AM4/AM5)

Description

The Alphacool ES 1 was specially designed for the requirements of server cooling and is an adapted version of the Alphacool Core 1. The cooler is particularly space-saving and has been developed for use in server and workstation systems.

Optimized for server projects

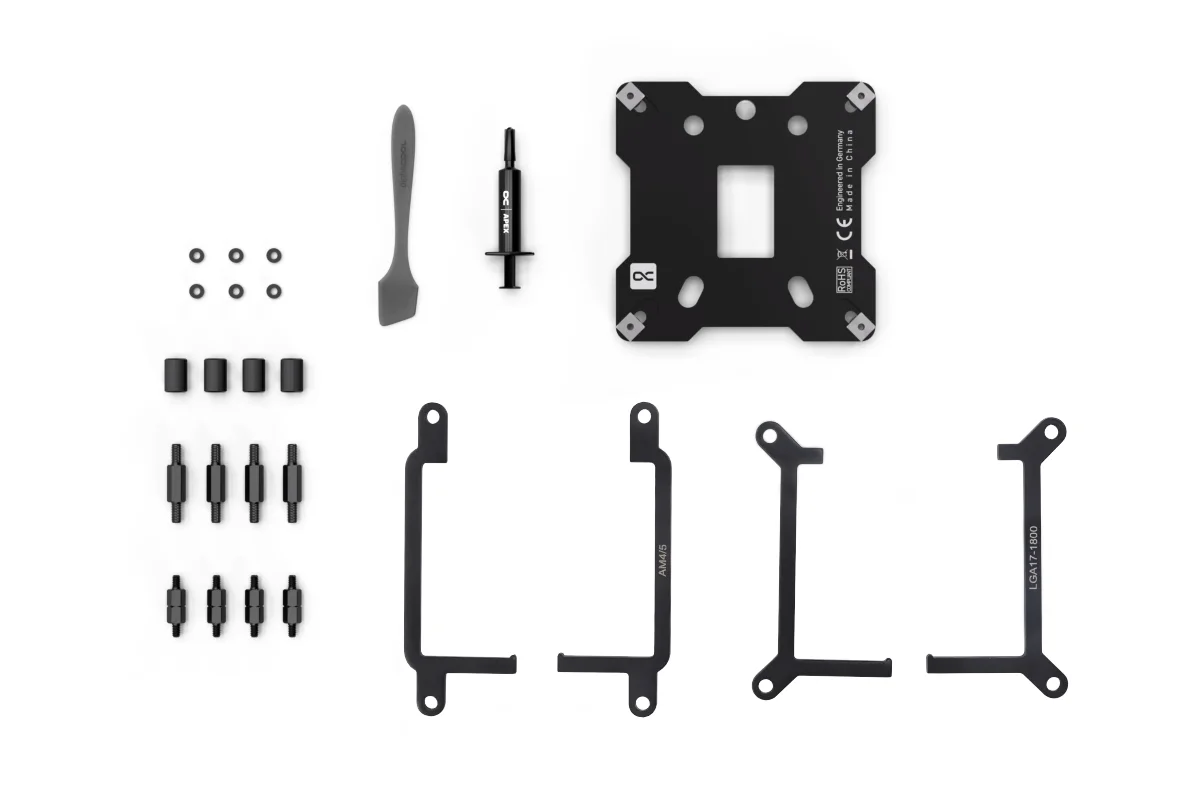

Thanks to the side connections and flat design, the ES 1 can be installed in small systems with little space and can therefore be easily installed in 1 U server cases. The new mounting system and the use of acetal for the housing help to minimize both the assembly effort and the costs for large quantities.

Reliable cooling
Alphacool combines the best of two worlds with the ES 1. The innovative 3D Jetplate in combination with the proven cross-slot technology ensures that the coolant is distributed evenly across the base of the cooler. Inside the cooler, an O-ring ensures a precise flow of water and thus guarantees reliable cooling. This tried and tested technology is also used in the Core 1.

Compatibility:
AMD: AM4 / AM5
Intel: LGA 1700

Technical data
Dimensions (L x W x H)	70.00 x 70.00 x 26.00mm
Form factor	1U
Material cooler	nickel plated copper
Material cooler top	acetal
Material threads	acetal
Threads	2 x G1/4“
Fin thickness	0.4mm
Fin distance	0.4mm
Pressure tested	8 bar
Max working temperature	60°C
Weight	230g
Color	black

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer’s warranty as well.
