Description

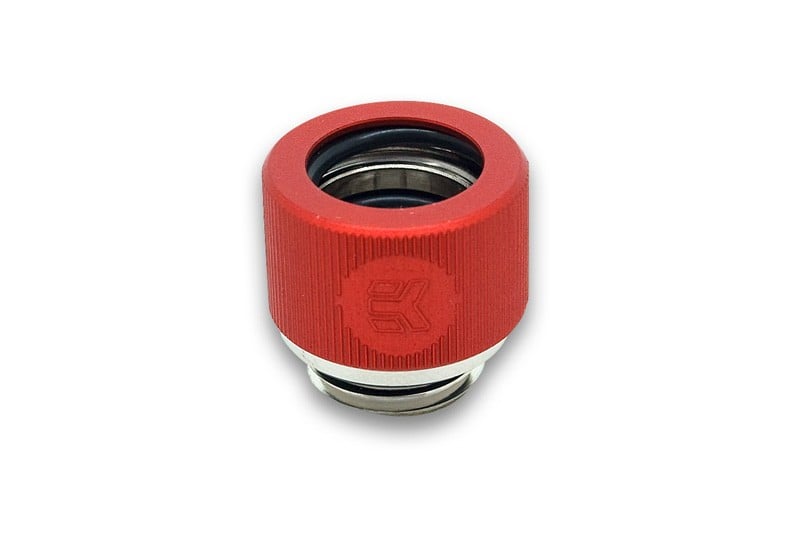

EK-HDC Fitting is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.
EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.

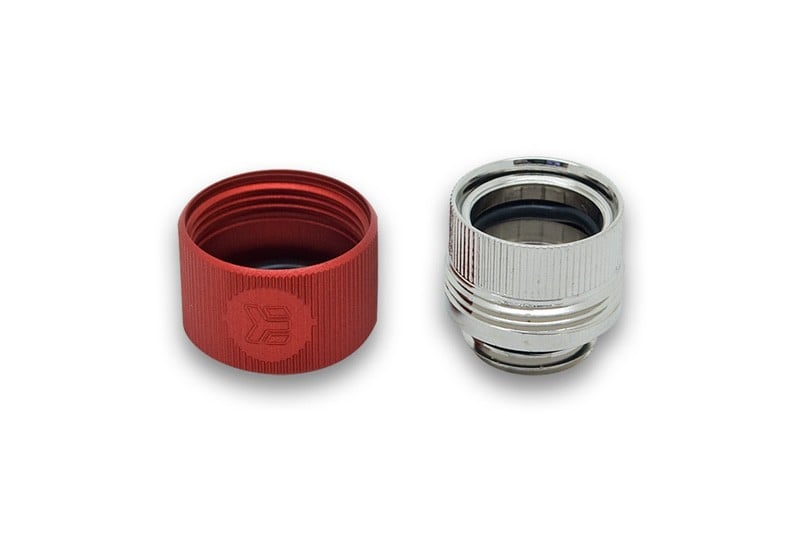

The barb is made of black nickel-plated CNC machined brass while the ring is made of red anodized CNC machined aluminum and feature quality O-rings. These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase).
Technical data:
– thread: G1/4″ BSP; 4.5mm male thread lenght
– supported tube: 12mm (OD)
– outer diameter of a fitting: 18.8mm
– installed height: 17mm
– compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
