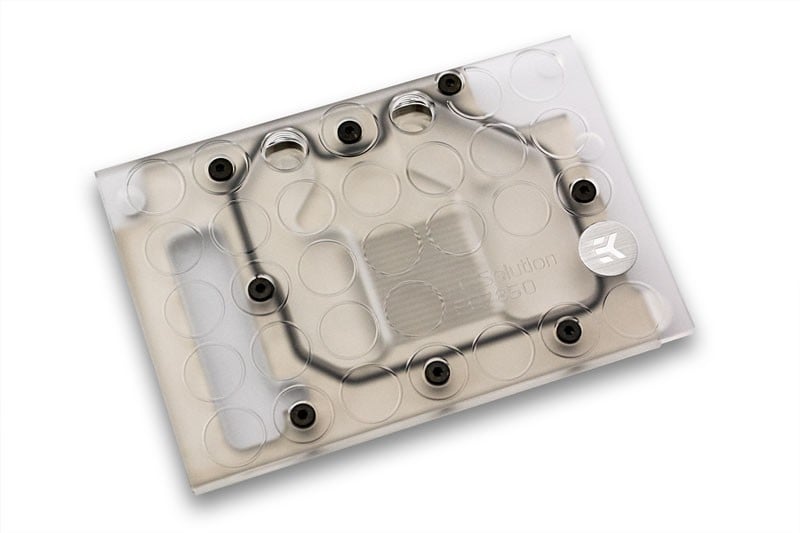

EK-FC7850 – Nickel

EK-FC7850 is a high performance full-cover water block for AMD reference design (as well as Powercolor’s LF R17FA) Radeon HD 7850 graphics card. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU and RAM as water flows directly over these critical areas thus allowing the graphics card and it’s VRM (passively cooled) to remain stable under high overclocks. EK-FC7850 water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

Base is made of nickel plated electrolytic copper while the top is made of quality cast satin finish acrylic material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC7850 Backplate – Black) which improves the looks of your graphics card.

Up to four EK-FC7850 series water block can be interconnected with EK-FC Bridge & Link system. Moreover this water block also lines up with EK-FC7870 which further expands the users choice of graphics cards. The connection link (EK-FC Link) is enclosed with each water block.

Enclosed:
– EK-FC7850 series water block with EK-FC Link
– mounting mechanism with screw-in brass standoffs
– thermal pads
– themal grease
