Description
Fujipoly® Sarcon® widely recognized as the most advanced thermal pads in the world. It is the best you can get for your modding project.
Sarcon® GR45A Series is a highly conformable and high thermal conducting gel material in a versatile sheet form that easily fits and adheres to most all shapes and sizes of components. It has a good handling characteristics due to highly mechanical properties.
Specification:

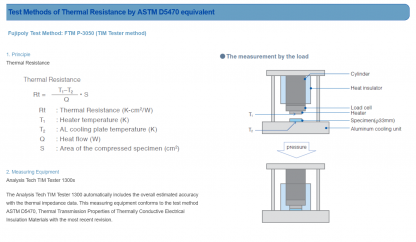

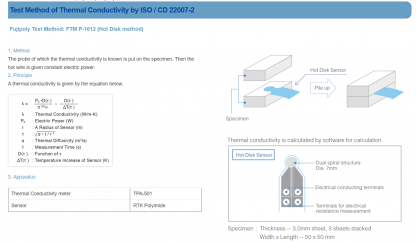

- Thermal conductivity: ASTMD 5470 test 6.0 W/m°K (No compression Hot Disk test 4.5 W/m°K)
- Thickness: 0.5mm
- Sheet size: ~ 100x50mm
- Surface: Double sticky surface
- Color: Gray
- Product of Japan
Handling:
- Keep pads in the sealed package to protect from dirt and drying up.
- It is recommended to use the material in up to 30% of the compression ratio.
- It is recommended to compress the material with an equal ratio on the whole surface. Partial excessive stress may also result in excessive silicone oil exudation.
