|Hint:||Compatible till 16/13mm straight, Compatible till 9/13mm angled|

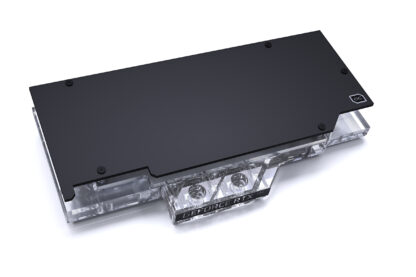

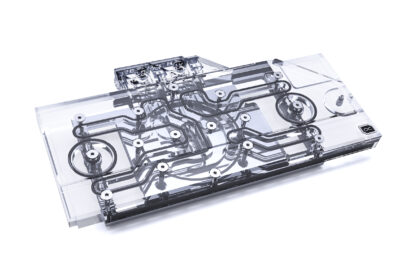

The Alphacool Eisblock Aurora Acrylic GPX graphics card water cooler with backplate combines style with performance. Extreme cooling performance and an extensive digital RGB lighting characterize it. Experience and technical know-how from more than a decade have gone into the development, without making any technical compromises. The Eisblock Aurora Acryl GPX is a significant evolution of the previous Alphacool graphics card water cooler, which has been improved in every area.
During the development of the Eisblock Aurora Acryl GPX graphics card water cooler, emphasis was naturally placed on increasing performance. First, the cooler was brought closer to the individual components by reducing the thickness of the heat conducting pads. Next, the chrome-plated copper block was also made thinner. Step 3 involves the constant optimisation of the water flow within the cooler. The result: All important components such as voltage converters and RAM are cooled much better and more effectively by the water and the cooling performance increases significantly.
The addressable digital aRGB LEDs are embedded directly in the cooling block and run along the sides of the entire cooler. The effect is an illumination that engulfs the entire cooling block. No corner or edge is left unlit by the aRGB LEDs. The new design is more angular, with all edges bevelled. The result is better light diffusion in the water cooler due to the reflections on these bevels. They also create various contours that give the Eisblock Aurora Acryl GPX cooler its very own visual touch.
Copper or aluminium?
Alphacool uses only copper for all water-bearing parts. Copper has almost twice the thermal conductivity of aluminum and is therefore clearly the better choice of material for water cooling. The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating.
Other special features
The Eisblock Aurora Acryl GPX GPU cooler has the patented screw plugs, which sit flush with the surface of the terminal. The Alphacool logo sits in the corner on the top and is also fully illuminated. On the front of the terminal, corresponding designations of the compatible graphics card manufacturers can be seen. Of course, these are also fully illuminated by the adressable digital LEDs. IN and OUT are marked by small discreet triangles. They are easily recognisable and fit perfectly into the overall visual line of the graphics card water cooler.
RTX 3080 TI
– MSI GeForce RTX 3080 Ti Ventus 3X 12G OC
– MSI GeForce RTX 3080 Ventus 3X 10G OC, 10GB GDDR6X, HDMI, 3x DP
– MSI GeForce RTX 3090 Ventus 3X 24G, 24GB GDDR6X, HDMI, 3x DP
– MSI GeForce RTX 3090 Ventus 3X 24G OC, 24GB GDDR6X, HDMI, 3x DP
|Technical data cooler|
|L x W x H||259 x 132 x 25mm|
|Material cooler||chrome-plated copper|
|Material cooler top||acrylic|
|Threads||4 x G1/4|
|Thickness cooling fins||0,6 mm|
|Illumination||digital aRGB LEDs|
|Power connector digital aRGB LEDs||3-Pin JST|
|Power digital aRGB LEDs||5V|
|Number of digital aRGB LEDs||14|
|Technical data backplate|
|L x W x H||259 x 108 x 6mm|
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer’s warranty as well.
