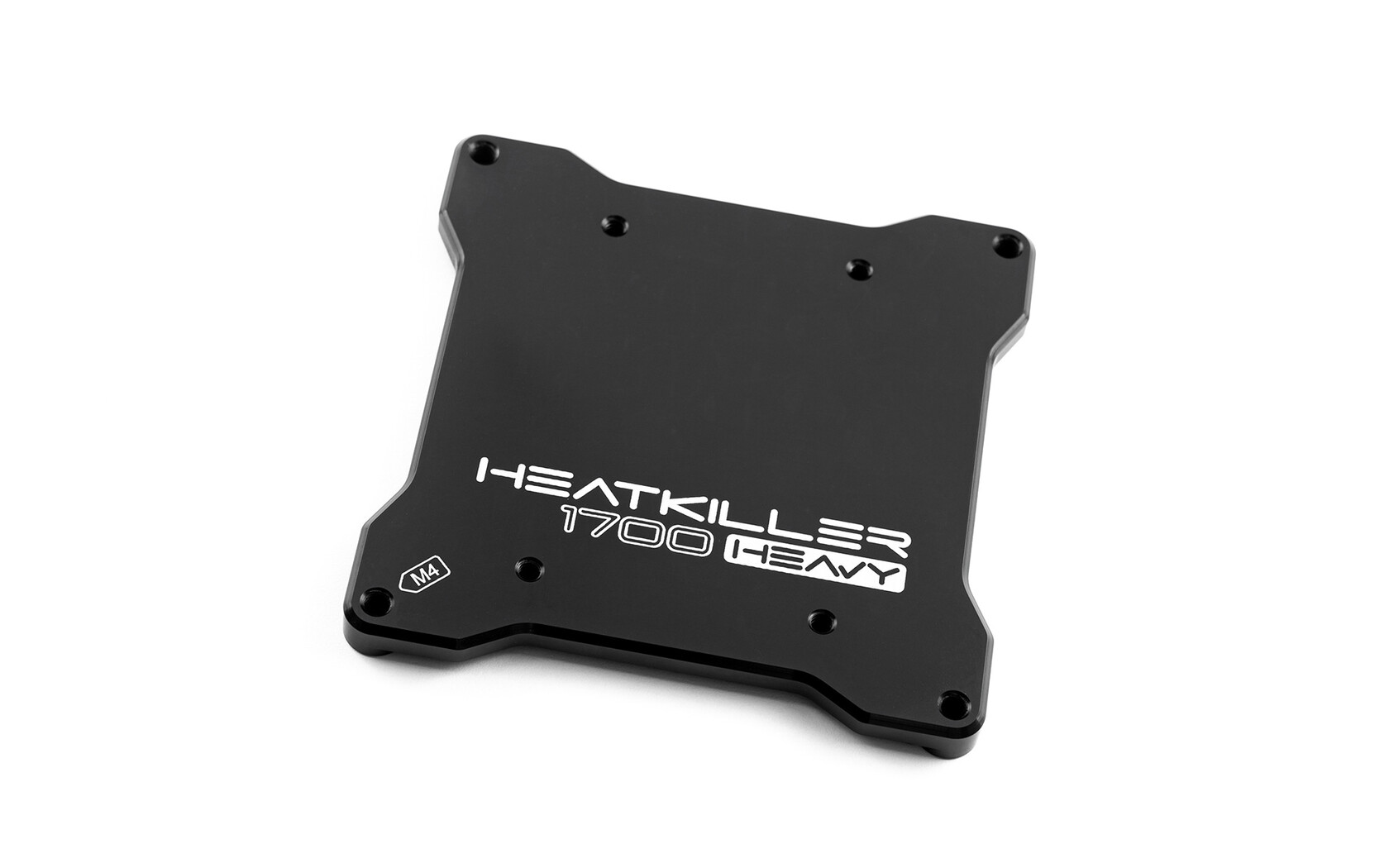

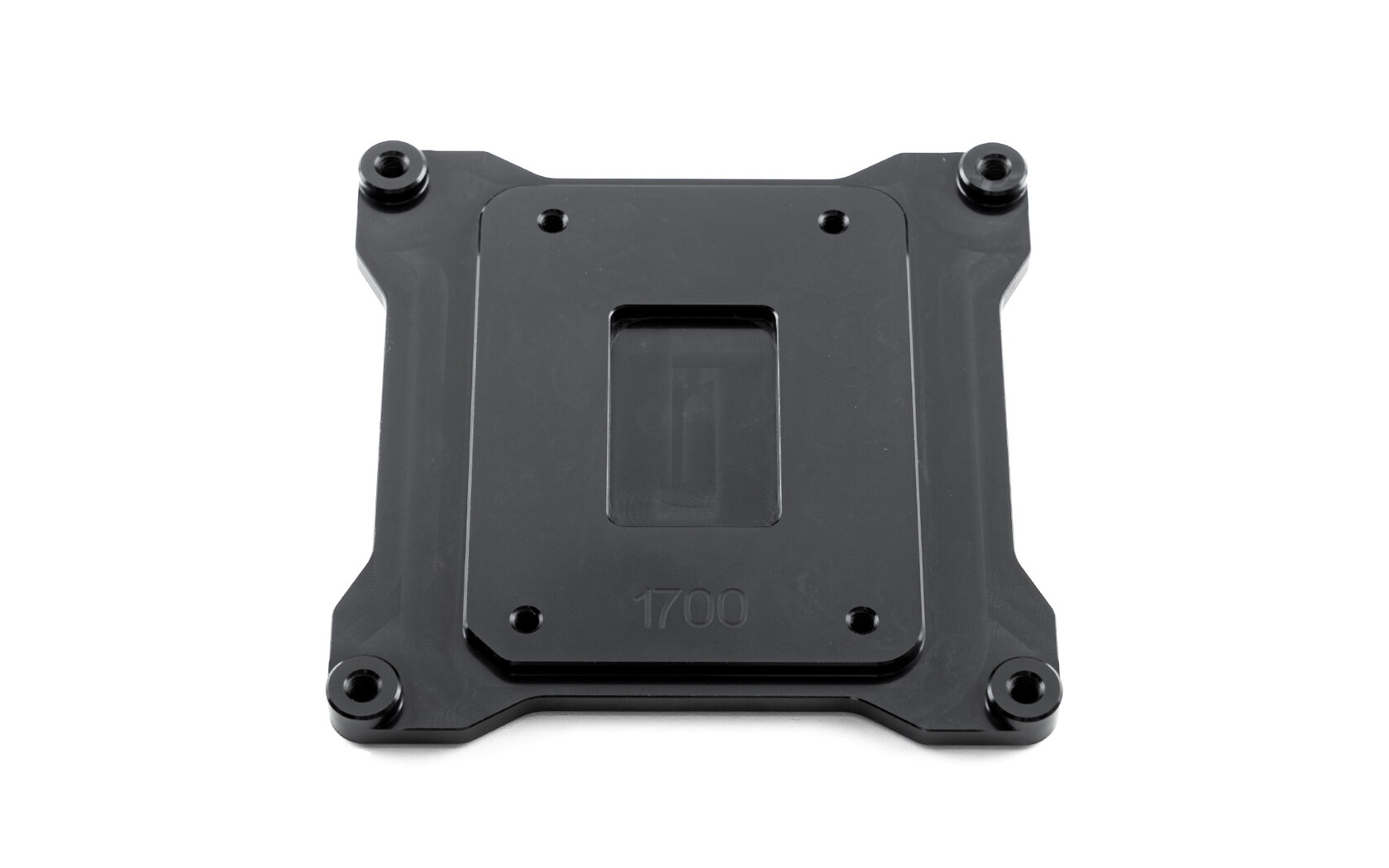

Massive HEAVY backplate for the current Intel Alder Lake LGA 1700 socket generation, CNC milled from 7mm thick aluminum . The HEAVY backplate prevents socket bending and therefore provides a more consistent contact pressure for maximum cooling performance. The included 0.8mm washer mod further optimizes the experience.
The insulated aluminium backplate can be easily mounted directly to the socket using integrated UNC threads. Additionally the case should have a recess in the tray in the area of the socket due to the thickness of the backplate. By the way, the backplate can also be used with coolers from other manufacturers. The M4 female threads provide an excellent compatibility.
Dimensions (length x width x height ): 87 x 87 x 7mm
Material : Aluminum
Compatible : Socket 1700 Alder Lake,
Weight : 110gr
Scope of delivery:
HEATKILLER® LGA 1700 HEAVY
Mounting material for HEATKILLER IV
0,8mm washer mod
