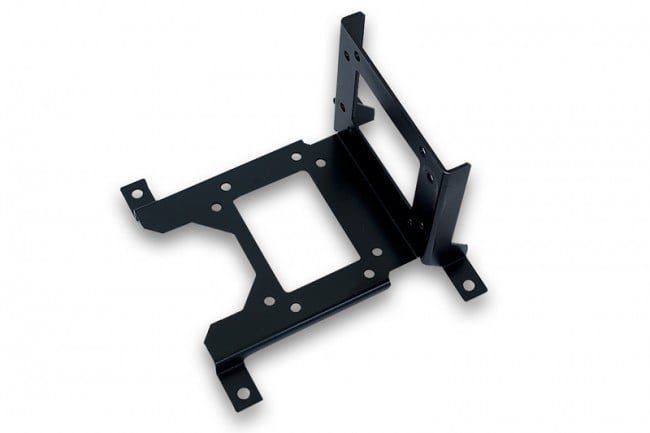

EK-UNI Pump Bracket (120mm FAN) Vertical is a vertical mounting adapter for installation of Laing D5 powered EK-XTOP Revo D5 and EK-XRES Revo D5 units to any 120mm fan hole pattern application. It can be used for both vertical and horizontal position.
Made from press-bent 1,5mm thick painted steel.
This product is compatible with the following EK products:
– EK-XRES Revo D5 series (any)
– EK-XTOP Revo D5 series (any)
– EK-XTOP DDC series (any)
– EK-UNI Pump Bracket (120mm Fan) Vertical
– 5x polyamid washer M4 0,8
– 5x screws M4x6 DIN7984
– 5x nut M4
– Allen key 2,5
