EK-Quantum Reflection² 7000D D5 PWM D-RGB

Description

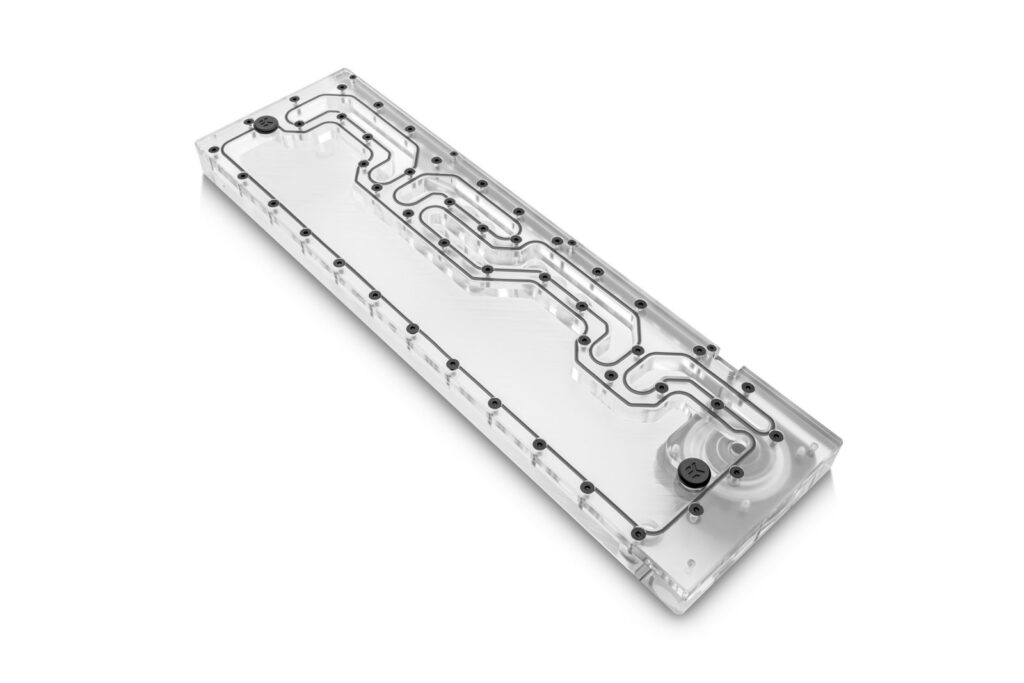

EK®, the premium water-cooling gear manufacturer, is launching the EK-Quantum Reflection² 7000D D5 PWM D-RGB – Plexi, a fully integrated water-cooling reservoir, coolant routing, and pump solution made to fit several Corsair cases. This distro plate is specifically designed to provide an advanced water-cooling solution with a market-leading D5 pump for users building custom liquid cooling loops with Corsair 7000D cases. This Reflection² distribution plate is EK-Matrix7 compatible.

Supported Corsair cases:

7000D AIRFLOW
iCUE 7000X RGB Tempered Glass

The EK-Quantum Reflection² 7000D D5 PWM D-RGB offers multiple industry-standard G1/4″ threaded inlets and outlets. The placement of these inlets and outlets is perfectly aligned to match the water-cooled PC components and minimize the number of bends the user has to make in order to create the perfect hardline loop. The distro plate synergizes well with the EK-Loop Pre-Bent acrylic and metal tubes, further simplifying the loop-building process.

The radiator compatibility per case is as follows:

Front: Up to EK-Quantum Surface X360
Top: Up to EK-Quantum Surface X360

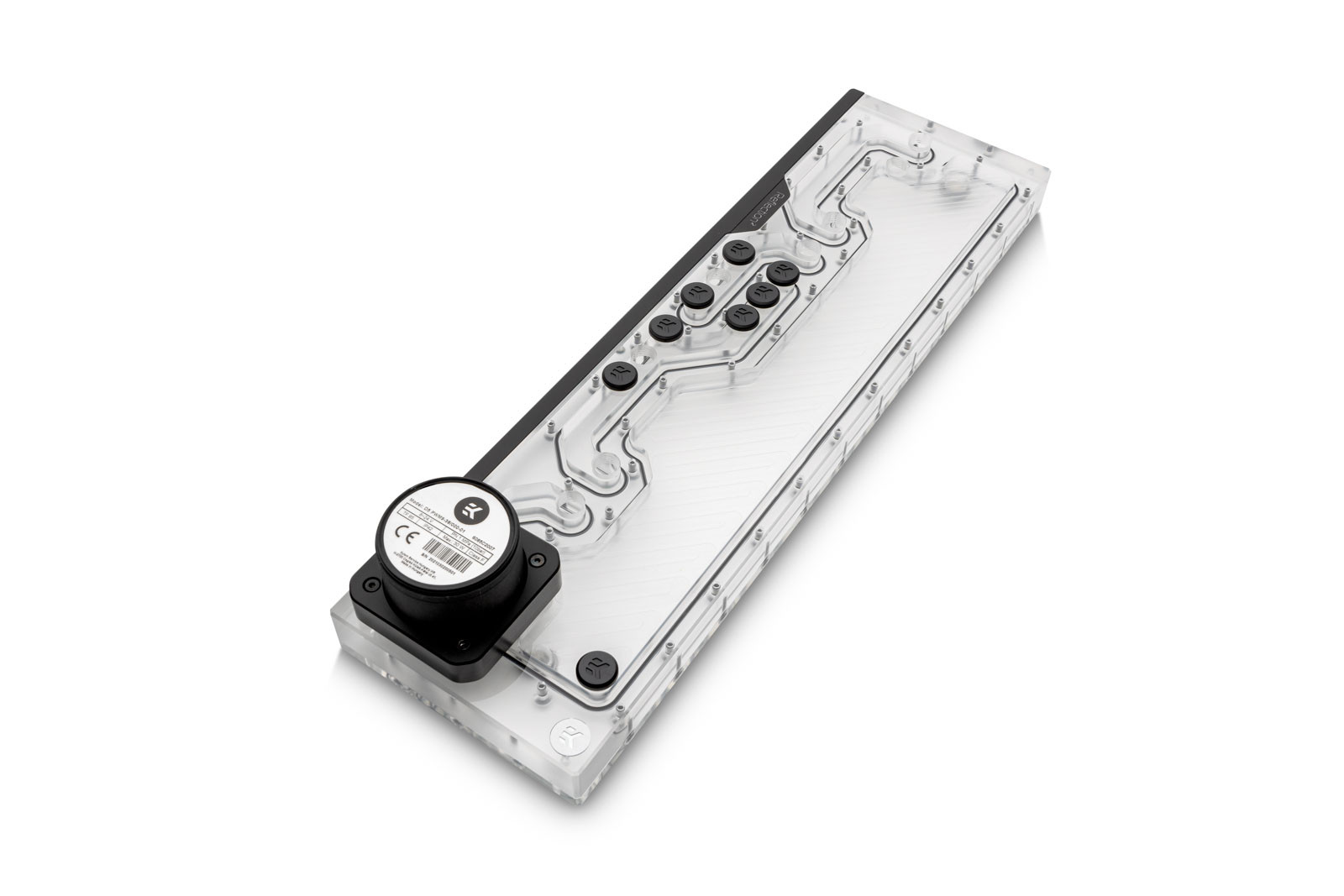

Engineered to be mounted next to the motherboard, the EK-Quantum Reflection² 7000D D5 PWM D-RGB – Plexi fits elegantly within Corsair 7000D and 7000X cases. The built-in addressable D-RGB LED strip runs down the unit’s entire length, while the anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header via an industry-standard connector. It is compatible with all major motherboard vendor software for a coordinated lighting effect.

Reservoir:
– Dimensions with the attached pump (W x D x H): 135 x 76 x 464mm
– Reservoir volume: ~440ml
– D-RGB LED count: 22
– D-RGB cable length: 450mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Technical specifications:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminum oxide, hard coal
– Power connector: SATA and 4-pin PWM FAN connector

Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

– EK-Quantum Reflection² 7000D D5 PWM D-RGB – Plexi
– Mounting mechanism and tools
– 10x MS – Quantum Plug – Ni (preinstalled)
– 10x EK-Quantum Torque Plug Cover – Black (preinstalled)
Made in Slovenia – EU!

PLEASE NOTE:

EK-Matrix7 compatible.
The Quantum Reflection² distribution plates are designed around Quantum Torque fittings and EK-Quantum Surface radiators.
The D5 pump is water lubricated; in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
The aluminum oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.
