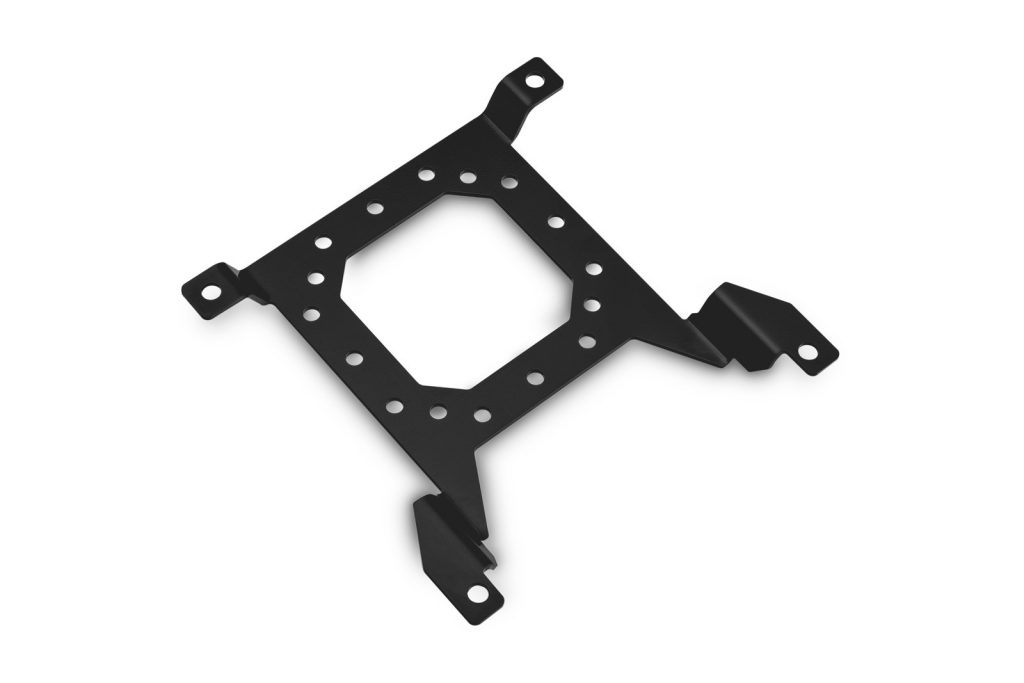

EK-Loop UNI Pump Reservoir Bracket – 120mm is a mounting adapter for installation of EK D5, DDC, SPC, and VTX pumps and pump-reservoir combo units to any 120mm fan mounting hole pattern (105mm hole spacing). Additionally, it can be used with EK-RES X3 Holder 60mm (2pcs) to mount any reservoir or pump-reservoir combo with a tube of 60mm in diameter.
It can be used horizontally or vertically. The offset on the bracket allows for precise placement of the pump or reservoir according to your needs for clearance or easier tube routing. By turning the bracket around the offset can be moved left, right, back, or forward in a horizontal setup, and also left, right, up, or down in a vertical setup.

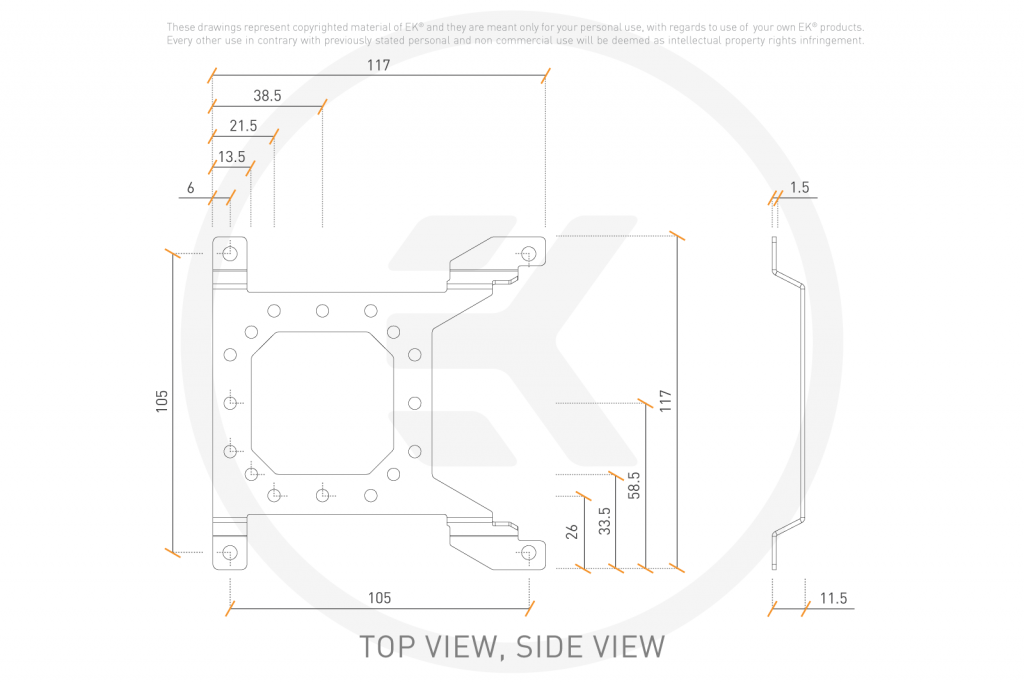

Made from press-bent 1,5mm thick painted steel. The height of the bracket is 11.5mm.
This product is compatible with the following EK products:
– Vertical: EK-Quantum Kinetic TBE D5 series (any)
– Vertical: EK-XRES Revo D5 series (any)
– Vertical: EK-XRES X3 series (any)
– Horizontal: EK-XTOP DDC series (any)
– Horizontal: EK-XRES SPC Classic series (any)
– Horizontal: EK-Quantum Kinetic TBE DDC series (any)
– Horizontal: EK-Quantum Kinetic TBE VTX series (any)
– Horizontal and Vertical: EK-XTOP Revo D5 series (any)
– EK-Loop Uni Pump Reservoir Bracket – 120mm
– 5x polyamide washer M4 0.8mm
– 5x screws M4x6 DIN7984
– 5x nut M4
– Allen key 2.5mm
- The pump combo unit is just for showcase and it is not included.
- This product can not be mounted on EK-Vardar X3M fans.
