Description
Connection options

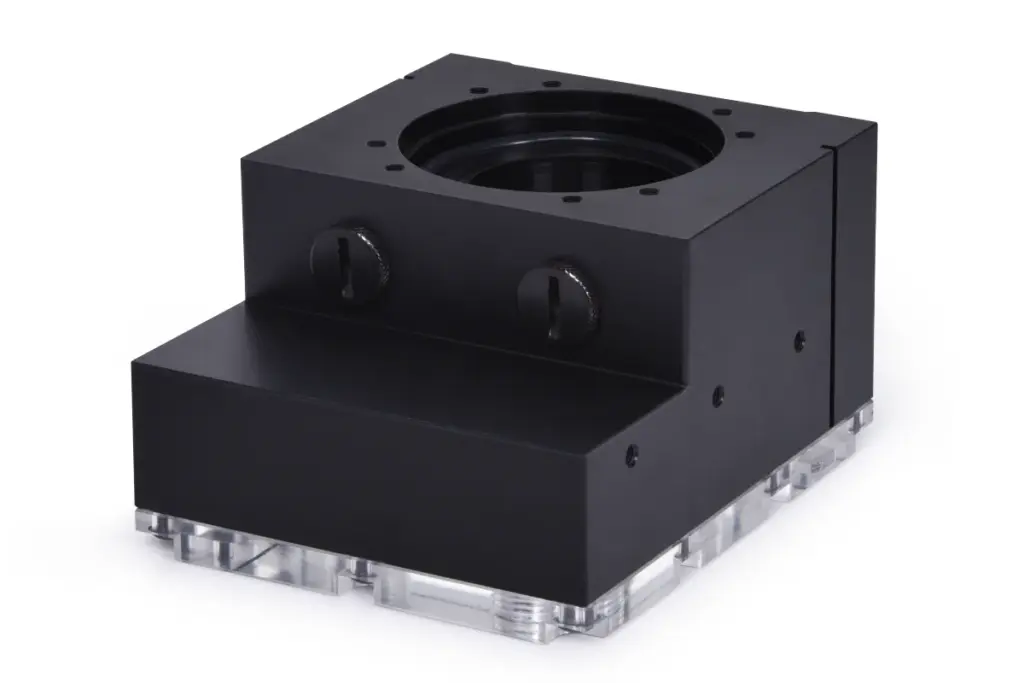

The ES 4U Reservoir has a total of 3 inlets and one outlet. All connections use a G1/4″ thread. 2 inputs are located on the acrylic cover in the front range. The reservoir can be perfectly filled or emptied via these inputs. The input and the output for integrating the reservoir into the water circuit are located on the back.
Assembly & maintenance

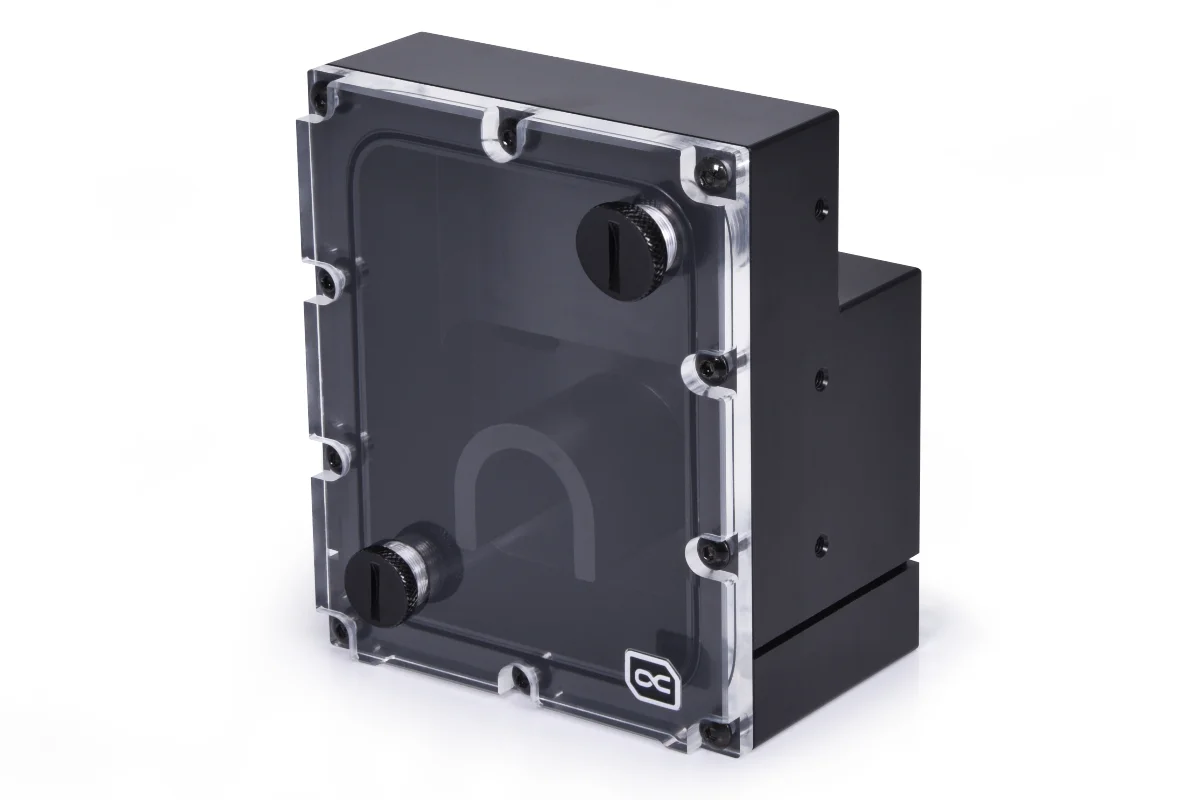

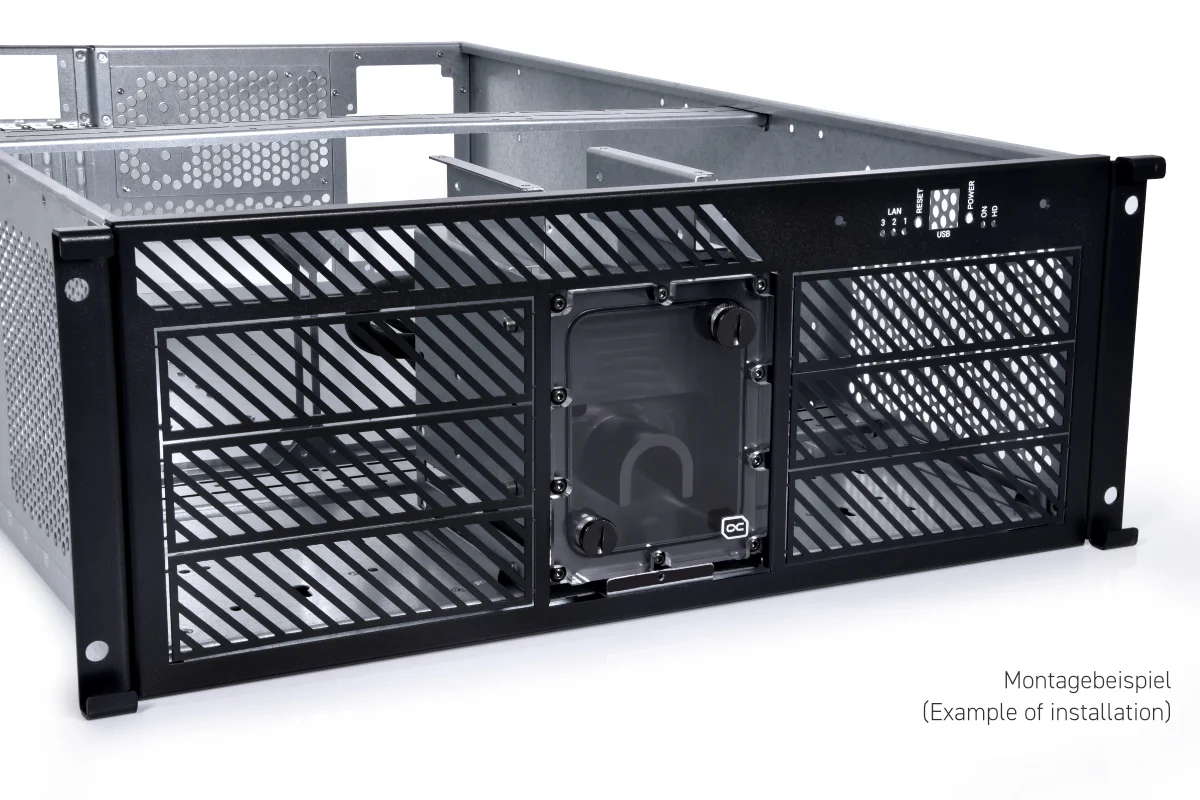

The ES Reservoir is mounted in the front of a 4U server rack. The acrylic cover allows visual control of the water cooling level. The G1/4″ inlets in the cover allow easy filling, draining and venting of the water circuit.
Compatibility

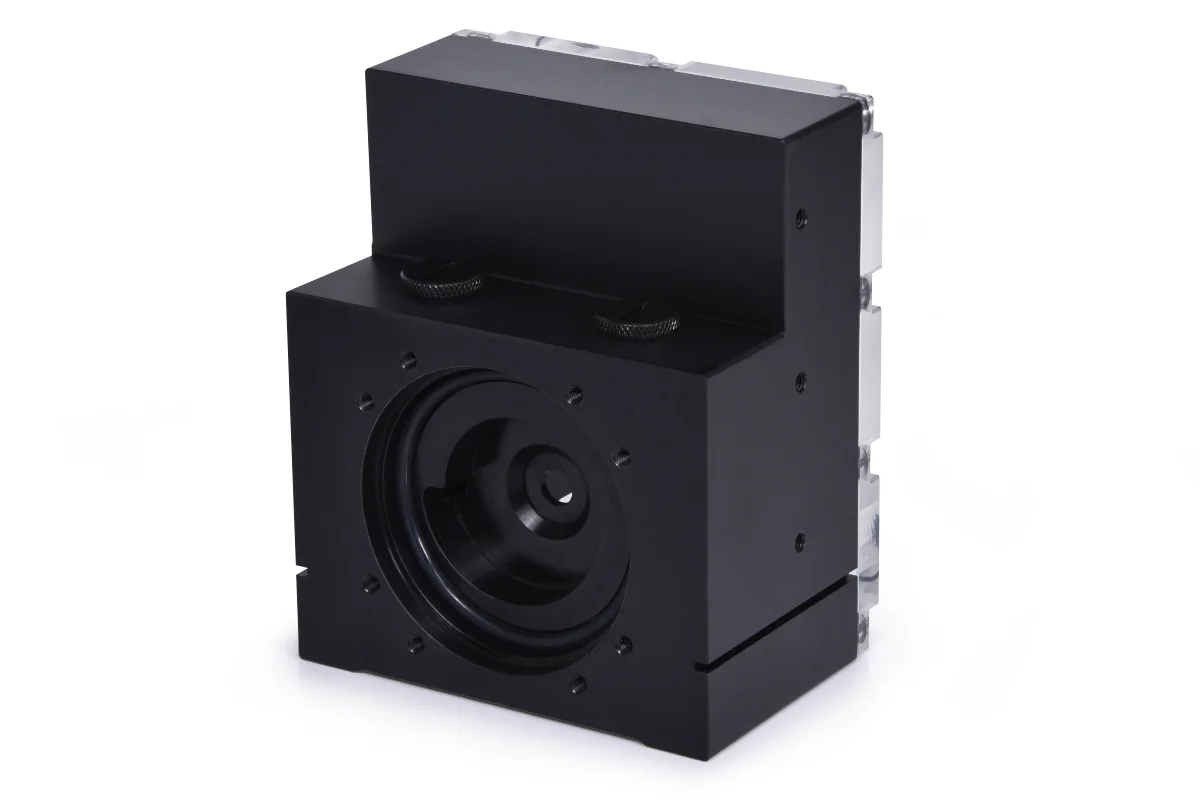

The ES 4U Reservoir has an integrated pump top and is compatible with any original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the scope of delivery.

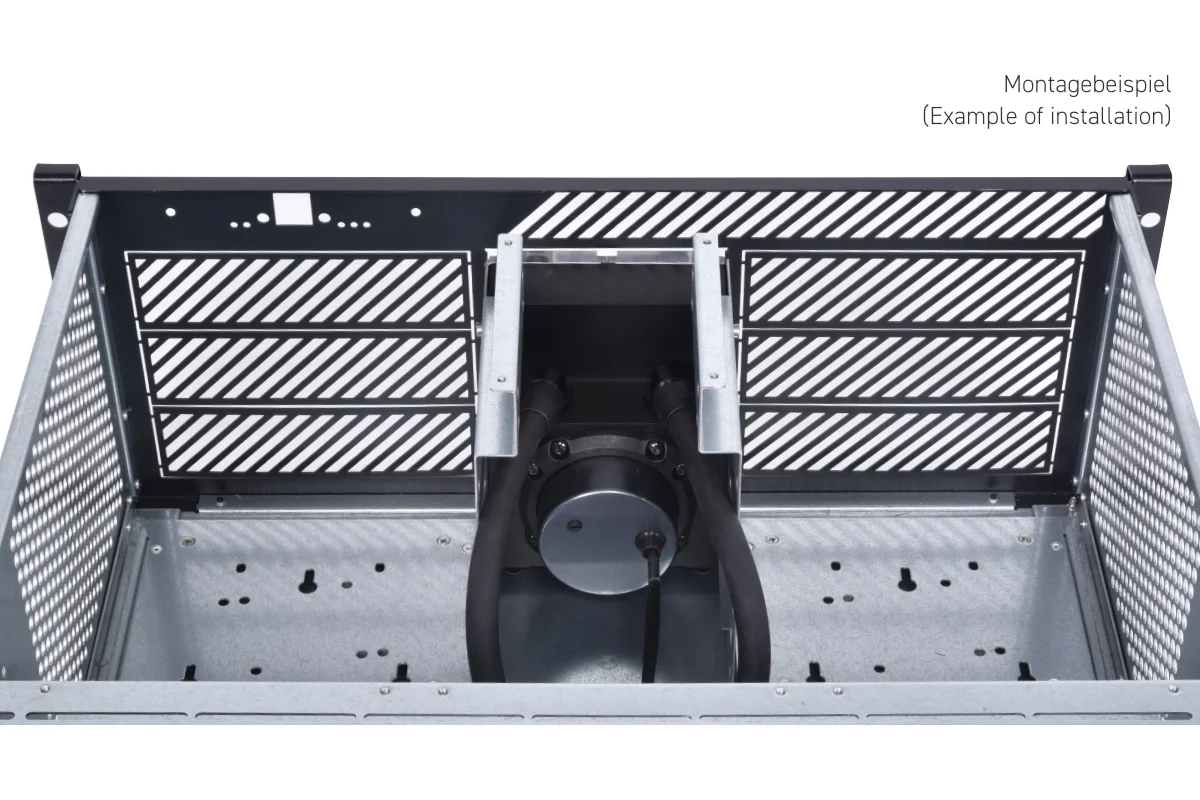

(Note: The pump shown in the installation example is not included in the scope of delivery!)
Technical data | |
L x W x H | 121,6 x 101,2 x 70 mm |
Pump compatibility | D5 |
Material housing | acetal |
Material cover | acrylic |
Connection | 4x G1/4“ internal thread |
Maximum working temperature | 60 °C |
Pressure tested | 0,8 Bar |
Weight | 674 g |
Color | black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer’s warranty as well.
