Aquacomputer Standby Power Adapter for LEAKSHIELD System

Description

This standby power adapter for LEAKSHIELD can be used to supply power from an external power supply (USB charger, USB power bank – not included in delivery) to a LEAKSHIELD device while the computer is turned off.

In order to do so, the connector “USB” of the adapter has to be connected to an USB port of the computer, the USB port of the LEAKSHIELD device has to be connected to the connector “DEVICE” of the adapter. Additionally, an external power source has to be connected to the connector “POWER” of the adapter.
USB communication between LEAKSHIELD and computer is not affected by the standby power adapter.

Technical details:
Dimensions: approx. 26 x 19 x 11 mm
Maximum current rating: 500 mA at 5 V DC

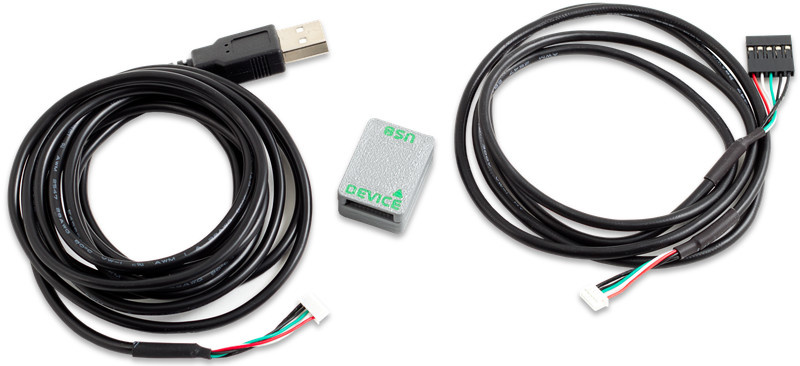

Scope of delivery:
One standby power adapter
One USB cable with female pin header, length approx. 100 cm
One USB cable with type A header, length approx. 200 cm

Compatible external power source:
USB charger or USB power bank with USB type A output connector, Voltage 5 V DC, rated power min. 500 mA or 2.5 W

Please note:
External power source and LEAKSHIELD not included in delivery.
